LGE-3080Pure Sine Wave Car Power Inverter

Home - Products - 220v 230v Pure Sine Wave Inverter

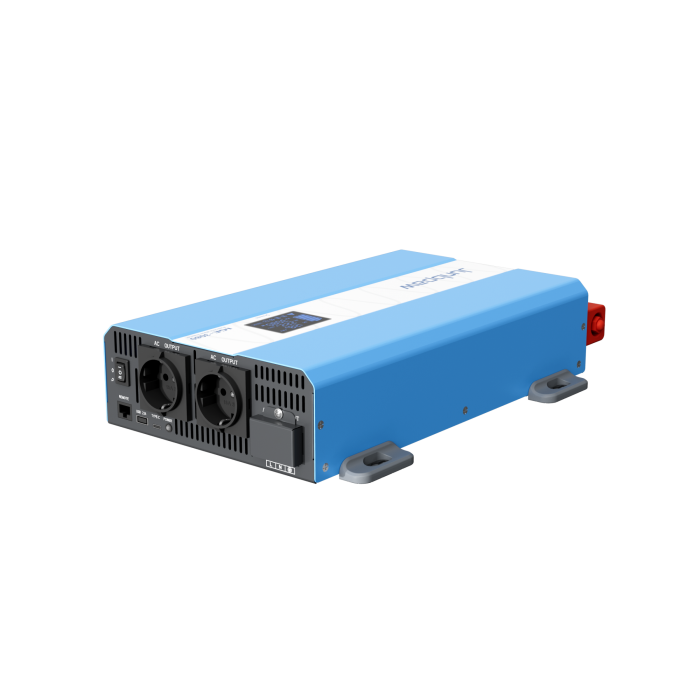

LGE-3000W Pure Sine Wave Car Power Inverter

A highly reliable DC-to-AC inverter system;

With advanced power electronic and microprocessor technology;

Pure sine wave technology delivers quiet and high-quality AC power;

Input & output fully isolation;

Efficiency exceeding 90% with a peak surge of 9000W;

Temperature & load controlled cooling fan;

Intelligent software for power management;

User-friendly remote control and multiple outlets;

Input protection：Reverse Polarity (Fuse) / Under Voltage / Over Voltage

Output protection：Short Circuit / Overload / Over Temperature

Strong load adaptability: inductive/ capacitive/ resistive/ mixed load;

Compatible with various batteries;

Contact Now

+ Inquire

Downloads

Description

Specification

FAQ

3000W Pure Sine Wave Car Power Inverter

【3080W Continuous Rated Power】The Junbpaw DC 12V/24V/48V to AC 220V/230V/240V inverter delivers a true, non-marketing-rated continuous 3080W output with 94% conversion efficiency, supporting surge power up to 6000W for demanding applications. This power rating is rigorously tested and guaranteed, ensuring no false specifications.
【Dual Ball-bearing Fans】The Junbpaw pure sine wave inverter built-in dual ball-bearing fans ensure quieter performance, an extended lifespan, and stable operation for over 50,000 hours.
【Cooling Airflow Path】By optimizing the layout and configuration of components on the PCB, a perfect cooling airflow channel is formed.
【Bus Bar Connect Design】Junbpaw inverters adopt a bus bar connection system that replaces conventional cables, enhancing safety,boosting efficiency, and achieving a more compact design.
【Remote Monitoring & Control】 This 3080W solar inverter features a remote display screen for easy tracking, enabling remote monitoring for enhanced control and convenience
【Pre-charge Function】Engineered with a pre-charge function to prevent damaging inrush currents.
【Enhanced Safety Features】Equipped with Ground-Fault Circuit Interrupter (GFCI) technology, with under-voltage and over-voltage protection, over-temperature protection, overload protection, and short-circuit protection.
【Application】Junbpaw Pure Sine Wave Inverter with built-in USB and Type-C ports, suitable for RVs, trucks, camping, household use, emergency power, and off-grid living.

Output Voltage: 220/230/240V

Rated power 3080w

MODEL NO.		LGE-3080
OUTPUT	Rated Power(Typ.)	3080W
	Maximum Output Power(1 Min)	>3080W~3542W(100%~115%)
	Surge Power(Max.300 ms)	>9000W
	AC Voltage	220/230/240VAC
	Frequency	50/60 Hz±0.5%
	Waveform	Pure sine wave(THD<3%)
	AC Regulation (Typ.)	±5%
	USB	output voltage:5V output current:2.1A maximum power:10.5W
	Type-c	output voltage:9V output current:2A maximum power:18W
	LED Indicator	Input Voltage level,output load level and faulty status
INPUT	DC Voltage	12VDC	24 VDC	48 VDC
	Voltage Range	10.5~16.5VDC	21.0~33.0VDC	42.0~66.0VDC
	No Load Current	0.6A	0.4A	0.25A
	Efficiency(max)	91%	92%	93%
	Remote Standby Mode	≤0.08W	≤0.08W	≤0.08W
PROTECTION	Input Under -Voltage Protection	10.0±0.3VDC	20.0±0.5VDC	41.0±1.0VDC
	Input Under-Voltage Recovery	12.5±0.3VDC	25.0±0.5VDC	50.0±1.0VDC
	Input Over -Voltage Protection	16.5±1.0VDC	33.0±1.0VDC	63.0±1.0VDC
	Input Over -Voltage Recovery	15.0±0.5VDC	30.0±0.5 VDC	58.0±1.0VDC
	Output Overload	3080W≥115%
		1minute automatic shutdown output,automatic lock,restart to recover
	Output Short Circuit	Output short circuit protection 3s shutdown lock,restart torecover
	Over Temperature	85C±5℃
	DC Input Reverse Polarity	By internal fuse open
SAFETY&EMC	Withstand Voltage	Bat I/P-AC O/P:3.0 KVAC AC O/P -FG:1.5 KVAC
	Isolation Resistance	BatI/P-AC OP,BatI/P-FG,AC OP-FG:100Mohms/500VDC 25C70%RH
	EMC Emission	Compliance to FCC dassA,E-Mark EACTPTC 020,EN55032 cassA,72/245/CEE,95/54/CE
	EMC Immunity	Compliance to EAC TPTC 020,EN61000-4-2,3,4,5,6,8,11
ENVIRONMENT	Working Temp	-30C~60℃
	Working Humidity	20~90%RH
	Storage Temp,Humidity	-30~70℃/-22~+158F,10~95%RH non-condensing
OTHERS	Dimension	404.525985mm
	Packing	≈5.8KG

High Efficiency & Easy to install

3000W pure sine wave inverter for 12v/24v/48v

Wall Mounting
Save Space

Long Lasting
Performance

Friendly to Electrlcal
Appliances

Wireless screen

Compatible with
Various Batteries

Reliable Inverter System

With advanced power electronic and microprocessor technology. Pure Sine Wave Output ensures clean, reliable power.

Powerful DC to AC

This power inverter provides 1080W continuous DC to AC power with a 3000W peak surge during load start-up.

Protect Your Electronics

Our pure sine wave inverter generates a pristine pure sine wave output, This ensures an unwavering supply of high-quality electricity, perfect for safeguarding your sensitive electronics.

Extremely Low No-Load Loss

The 1000W inverter features advanced pure sine wave technology, achieving an extremely low no-load loss of less than 10W, which contributes to energy savings.

Equipped with Dual LCD Displays

It's easy to monitor the inverter's operating status, allowing for easy troubleshooting and adjustment of both the inverter and battery settings.

Continuous Power Supply

With junbpaw Overland Electrical System and Solar panels, Enough power for long time off grid life.

Silicone Foot Pad

The silicone foot pad reduces friction, absorbs vibrations, and ensures quiet operation, protecting surfaces and creating a more stable, noise-free environment.

Adaptable for Any Environment

From the scorching heat to the chilly cold, the Junpaw inverter thrives. With a working temperature range of -30°C to 70°C and an operating humidity range of 10% to 95%RH.

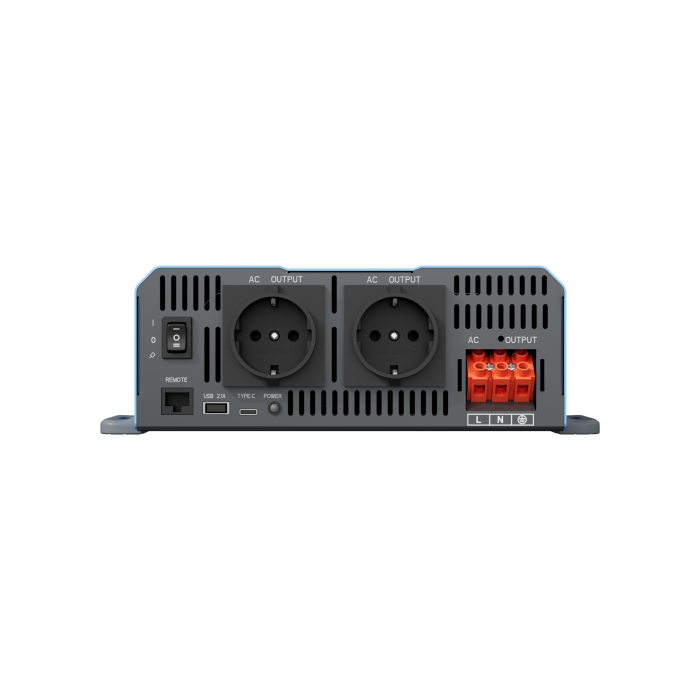

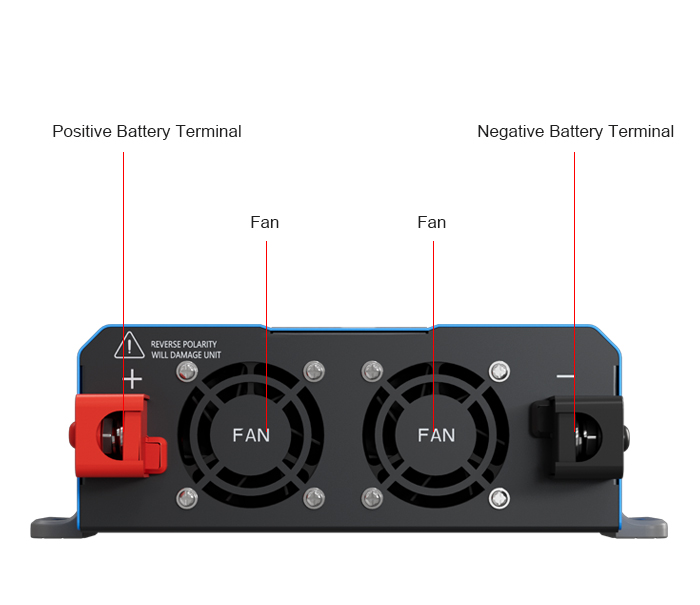

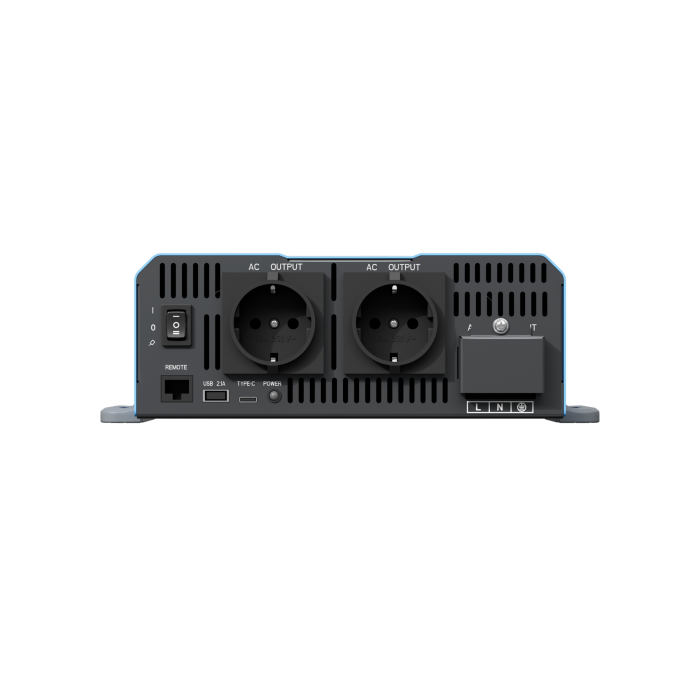

Discription of Ports and components

Host Machine

Packing List

LGE-3080 Inverter

Power Cord

LCD Display

Remote Key

User Manual

Junbpaw Pure Sine Wave Inverter Manufacturer

Experience:
We are factory,with more than 10 years of inverter manufacturing experience.
Quality:
High-efficiency conversion: Our inverter conversion efficiency can reach 90% above with the defect rate is less than 3%.
High-quality materials and heat dissipation: High-quality capacitors, inductors, and power tubes enable the inverter to run at full load for a long time. The superior heat dissipation system can prevent the inverter from overheating, avoiding performance degradation and component damage caused by high temperature.
Circuit design: The circuit board layout is reasonable and compact, pure sine wave with THD<3%.
Comprehensive protection: With overvoltage, overcurrent, overheating, undervoltage, short circuit, and reverse polarity protection.

3000W Pure Sine Wave Inverter

With peak power of 9000W

Junbpaw 3000W Pure Sine Wave Power Inverter acts as a DC to AC converter that allows you to power your household appliancesWith remote control panel,you can realize real monitoring of your inverter.

MODEL NO.		LGE-3080
OUTPUT	Rated Power(Typ.)	3080W
	Maximum Output Power(1 Min)	>3080W~3542W(100%~115%)
	Surge Power(Max.300 ms)	>9000W
	AC Voltage	220/230/240VAC
	Frequency	50/60 Hz±0.5%
	Waveform	Pure sine wave(THD<3%)
	AC Regulation (Typ.)	±5%
	USB	output voltage:5V output current:2.1A maximum power:10.5W
	Type-c	output voltage:9V output current:2A maximum power:18W
	LED Indicator	Input Voltage level,output load level and faulty status
INPUT	DC Voltage	12VDC	24 VDC	48 VDC
	Voltage Range	10.5~16.5VDC	21.0~33.0VDC	42.0~66.0VDC
	No Load Current	0.6A	0.4A	0.25A
	Efficiency(max)	91%	92%	93%
	Remote StandbyMode	≤0.08W	≤0.08W	≤0.08W
PROTECTION	Input Under -Voltage Protection	10.0±0.3VDC	20.0±0.5VDC	41.0±1.0VDC
	Input Under-Voltage Recovery	12.5±0.3VDC	25.0±0.5VDC	50.0±1.0VDC
	Input Over -Voltage Protection	16.5±1.0VDC	33.0±1.0VDC	63.0±1.0VDC
	Input Over -Voltage Recovery	15.0±0.5VDC	30.0±0.5 VDC	58.0±1.0VDC
	Output Overload	3080W≥115%
		1minute automatic shutdown output,automatic lock,restart to recover
	Output Short Circuit	Output short circuit protection 3s shutdown lock,restart torecover
	Over Temperature	85C±5℃
	DC Input Reverse Polarity	By internal fuse open
SAFETY&EMC	Withstand Voltage	Bat I/P-AC O/P:3.0 KVAC AC O/P -FG:1.5 KVAC
	Isolation Resistance	BatI/P-AC OP,BatI/P-FG,AC OP-FG:100Mohms/500VDC 25C70%RH
	EMC Emission	Compliance to FCC dassA,E-Mark EACTPTC 020,EN55032 cassA,72/245/CEE,95/54/CE
	EMC Immunity	Compliance to EAC TPTC 020,EN61000-4-2,3,4,5,6,8,11
ENVIRONMENT	Working Temp	-30C~60℃
	Working Humidity	20~90%RH
	Storage Temp,Humidity	-30~70℃/-22~+158F,10~95%RH non-condensing
OTHERS	Dimension	404.525985mm
	Packing	≈5.8KG

Frequently Asked Questions

Fregquently asked questions, we have integrated them into a self-service Q&A lfyou have other questions, please leave us a message.

Can I use the inverter with a 24V system?

Yes.We have 24V 2000W,and this model can work with 24V battery system.

Can I use this 12V inverter to charge my batteries?

No. The Junbpaw 12V DC to 230/240V AC inverter can only convert DC power to AC power.

What is the advantage of your inverter?

Our inverter is the most compact, portable, efficient and reliable sine wave inverter on the market. A 2000w inverter weighs only 3.8kg, measures 364.5*237*85mm with efficiency over 93%.

Can your inverter be connected to electrical appliances with short circuit?

Our inverter has a built-in intelligent detection circuit that can detect whether the appliance is short-circuited. When a short-circuited appliance is connected to the inverter, our inverter will not work and will automatically protect itself.
