Most portable, simplest and
space-saving power solution.
space-saving power solution.
High Power: Offers 1080W continuous
High Surge: up to 3000W peak;
Low no-load: Less than 10W
High Efficient: Over 90% efficiency;
Versatile Outlets: Includes 2x 220V AC and 1x USB port;
Advanced Safety: Protects against electrical issues;
Smart Cooling: Silent fan for temperature control;
Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage;
Output protection: Short Circuit / Overload / Over Temperature;
Strong load adaptability: inductive/ capacitive/ resistive/ mixed load;
Wide Applications: Ideal for RVs, trucks, and emergencies;
User-Friendly: Optional remote control panel.
Durable Build: Long-lasting performance.
Description
Specification
FAQ
【1080W Continuous Rated Power】The Junbpaw DC 12V to AC 230V/240V inverter delivers a continuous 1080W output with 93% conversion efficiency, supporting surge power up to 3000W for demanding applications.
The pre-charge function of the inverter eliminates the demand for high instantaneous current from the BMS during startup. Built-in Dual Protection (AC/DC), Even if insects ingress causes IGBT burnout, the inverter itself remains undamaged, eliminating risks of smoking or fire hazards.
【Pure Sine Wave Output】Junbpaw's advanced pure sine wave technology generates stable AC power comparable to grid electricity, protecting sensitive electronics and extending the lifespan of connected devices.
【Voltage and Frequency Switching】Junbpaw features professional-grade inverter capabilities, supporting easy switching between 230V/240V voltage and 50Hz/60Hz frequency. This ensures compatibility with various power requirements, delivering a stable and efficient user experience.
【High-Performance Solid-State Capacitors】The Junbaw 1080W inverter utilizes high-quality solid-state capacitors, making it ideal for high-temperature, high-load environments. It is less prone to power fluctuations from temperature changes, ensuring a longer lifespan.
【Dual Ball-bearing Fans】The Junbpaw pure sine wave inverter built-in dual ball-bearing fans ensure quieter performance, an extended lifespan, and stable operation for over 50,000 hours.
【Cooling Airflow Path】By optimizing the layout and configuration of components on the PCB, a perfect cooling airflow channel is formed.
【Bus Bar Connect Design】Junbpaw inverters adopt a bus bar connection system that replaces conventional cables, enhancing safety,boosting efficiency, and achieving a more compact design.
【Enhanced Safety Features】Equipped with Ground-Fault Circuit Interrupter (GFCI) technology, with under-voltage and over-voltage protection, over-temperature protection, overload protection, and short-circuit protection.
Junpaw 1000W Pure Sine Wave Power Inverter DC 12V/24V/48V to 220V/230V/240V AC Converter With Digital Display
Harness the power of efficiency with an efficiency of 91% (for 12V DC input) and 93% (for 24V/48V DC input), our inverter optimizes battery usage, allowing you to make the most of every charge.
Adapt high-quality materials, and keep full-rated power. Unlike other liquid capacitors, Junpaw uses advanced solid capacitors. Long lasting performance.
From recreational vehicles (RVs) to travel, camping, emergencies, and home power solutions, the Junpawe inverter proves its versatility time and again.
Our pure sine wave inverter generates a pristine pure sine wave output, This ensures an unwavering supply of high-quality electricity, perfect for safeguarding your sensitive electronics.
Two cooling fans will be automatically turned on and operated with low noise of <60dB, to avoid the device gets overheating.
This pure sine inverter is equipped with built-in protections including overload, over-voltage, under-voltage, high temperature, short circuit, leakage, and reverse polarity protection.
One inverter has frenquency & voltage switching.
|
MODEL NO. |
LGE-1080Ti |
|||
|
OUTPUT |
Rated Power(Typ.) |
1080W |
||
|
Maximum Output Power (1 Min) |
>1080W~1242W(100%~115%) |
|||
|
Surge Power(Max.300 ms) |
>3000W |
|||
|
AC Voltage |
220/230/240VAC |
|||
|
Frequency |
50/60 Hz±0.5% |
|||
|
Waveform |
Pure sine wave(THD<3%) |
|||
|
AC Regulation(Typ.) |
±5% |
|||
|

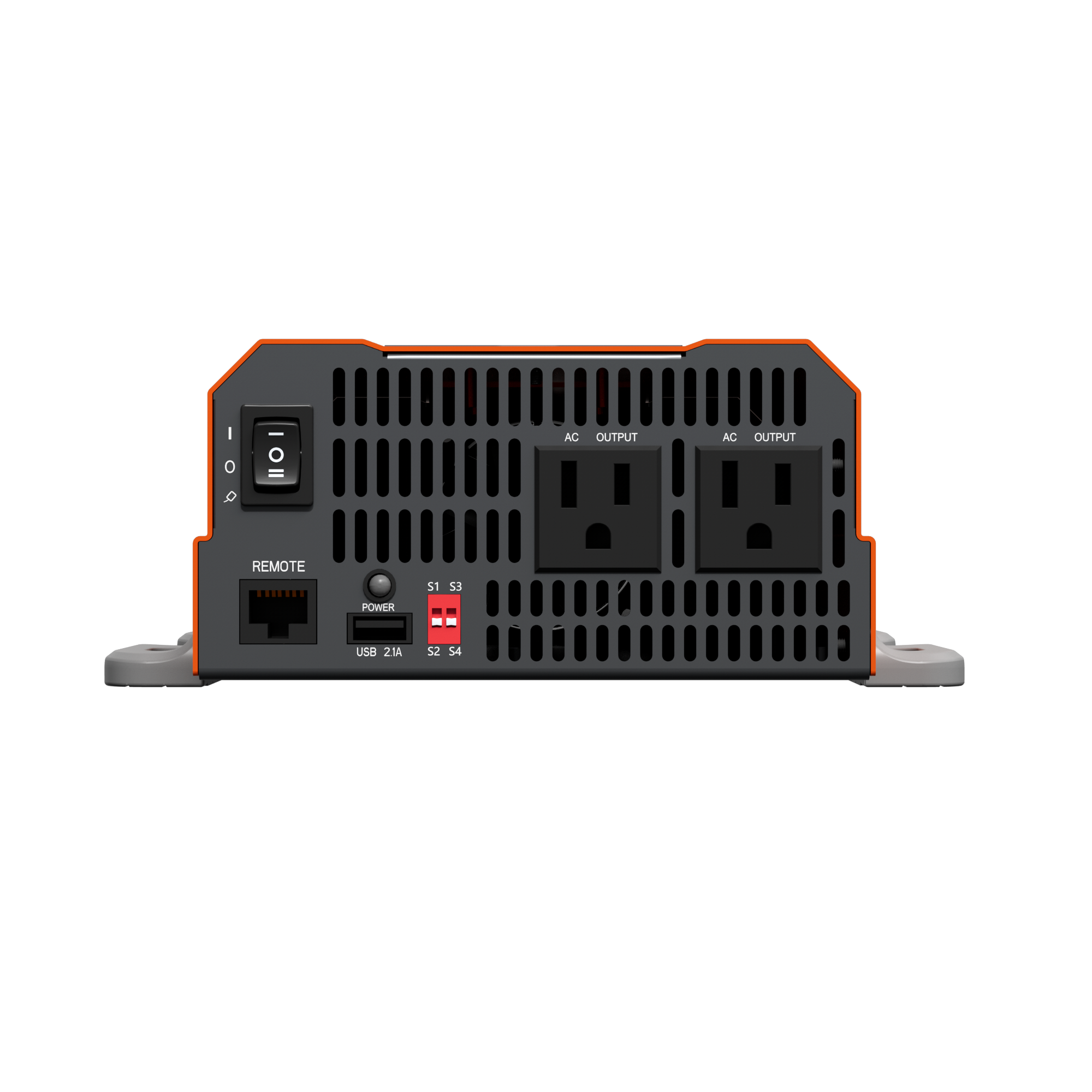

Voltage Switching |
1.Adjustable 230V240V,S3=240V,S4=230V;2.Adjustable 220V230V,S3=230V,S4=220V |
|||
|
Frequency Switching |
Adjustable 50/60Hz S1=60Hz,S2=50Hz (Frequency switching supports cold switching only) |
|||
|
USB |
Output voltage:5V output current:2.1A maximum power:10.5W |
|||
|
LED Indicator |
Input Voltage level,output load level and faulty status. |
|||
|
INPUT |
DC Voltage |
12VDC |
24 VDC |
48 VDC |
|
Voltage Range |
10.5~16.5VDC |
21.0~33.0VDC |
42.0~66 .0VDC |
|
|
No Load Current |
0.6A |
0.18A |
0.2A |
|
|
Efficiency (max) |
91% |
93% |
93% |
|
|
Remote Standby Mode |
≤0.08W |
≤0.08W |
≤0.08W |
|
|
PROTECTION |
Input Under -Voltage Protection |
10.0±0.5VDC |
20.0±0.5VDC |
41.0±1.0VDC |
|
Input Under -Voltage Recovery |
12.5±0.5VDC |
25.0±0.5VDC |
50.0±1.0VDC |
|
|
Input Over -Voltage Protection |
16.5±1.0VDC |
33.0±1.0VDC |
63.0±1.0VDC |
|
|
Input Over -Voltage Recovery |
15.0±0.5VDC |
30.0±0.5VDC |
58.0±1.0VDC |
|
|
Output Overload |
1080W≥115% |
|||
|
1minute automatic shutdown output,automatic lock,restart to recover |
||||
|
Output Short Circuit |
Output short circuit protection3s shutdown lock,restartto recover |
|||
|
Over Temperature |
85℃±5 ℃ |
|||
|
DC Input Reverse Polarity |
By internal fuse open |
|||
|
SAFETY&EMC |
Withstand Voltage |
Bat I/P-AC O/P:3.0 KVAC AC O/P -FG:1.5 KVAC |
||
|
Isolation Resistance |
Bat IVP-AC O/P,Bat IVP -FG,AC O/P-FG:100M ohms /500VDC/25 C/70%RH |
|||
|
EMC Emission |
Compliance to FCC cassA,E-Mark EACTPTC 020,EN55032 classA,72/245/CEE,95/54/CE |
|||
|
EMC Immunity |
Compliance to EAC TPTC 020,EN61000-4-2,3,4,5,6,8,11 |
|||
|
ENVIRONMENT |
Working Temp |
-30℃~60℃ |
||
|
Working Humidity |
20~90%RH |
|||
|
StorageTemp,Humidity |
-30~70℃I-22~+158F,10~95%RH non-condensing |
|||
|
OTHERS |
Dimension |
312*185*70mm |
||
|
Gross Weight |
=4.06 KG |
|||
Frequently Asked Questions
Fregquently asked questions, we have integrated them into a self-service Q&A lfyou have other questions, please leave us a message.
Can I use the inverter with a 48V system?
No.This is 12v pure sine wave inverter.so this model can only work with 12V battery system.
Can I use this 12V inverter to charge my batteries?
No.The Junbpaw 12VDC to 110/120VAC inverter can only convert DC power to AC power. Please check other series.
How Can I switch the voltage and frequency?
When you want to switch the frequency or voltage,pls turn off the inverter and toggle switch according to the user manual.
Can I switch the frenquency and voltage?
Yes.This inverter has function of frenquency and voltage switching.You can switch frenquency between 50HZ and 60HZ.And also it can switch voltage between 110V and 120V.
Can this inverter have eco mode?
When you turned on the inverter with no loads,the idle power will be only 7W.
