Home - Products - 220v 230v Pure Sine Wave Inverter

LGE-Ti 3000W Car Power Pure Sine Wave Inverter

High Power: Offers 3080W continuous

High Surge: up to 9000W peak;

Low no-load: Less than 10W

High Efficient: Over 90% efficiency;

Versatile Outlets: Includes 2x 220V AC and 1x USB port;

Advanced Safety: Protects against electrical issues;

Smart Cooling: Silent fan for temperature control;

Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage;

Output protection: Short Circuit / Overload / Over Temperature;

Strong load adaptability: inductive/ capacitive/ resistive/ mixed load;

Wide Applications: Ideal for RVs, trucks, and emergencies;

User-Friendly: Optional remote control panel.

Durable Build: Long-lasting performance.

Contact Now

+ Inquire

Downloads

Description

Specification

FAQ

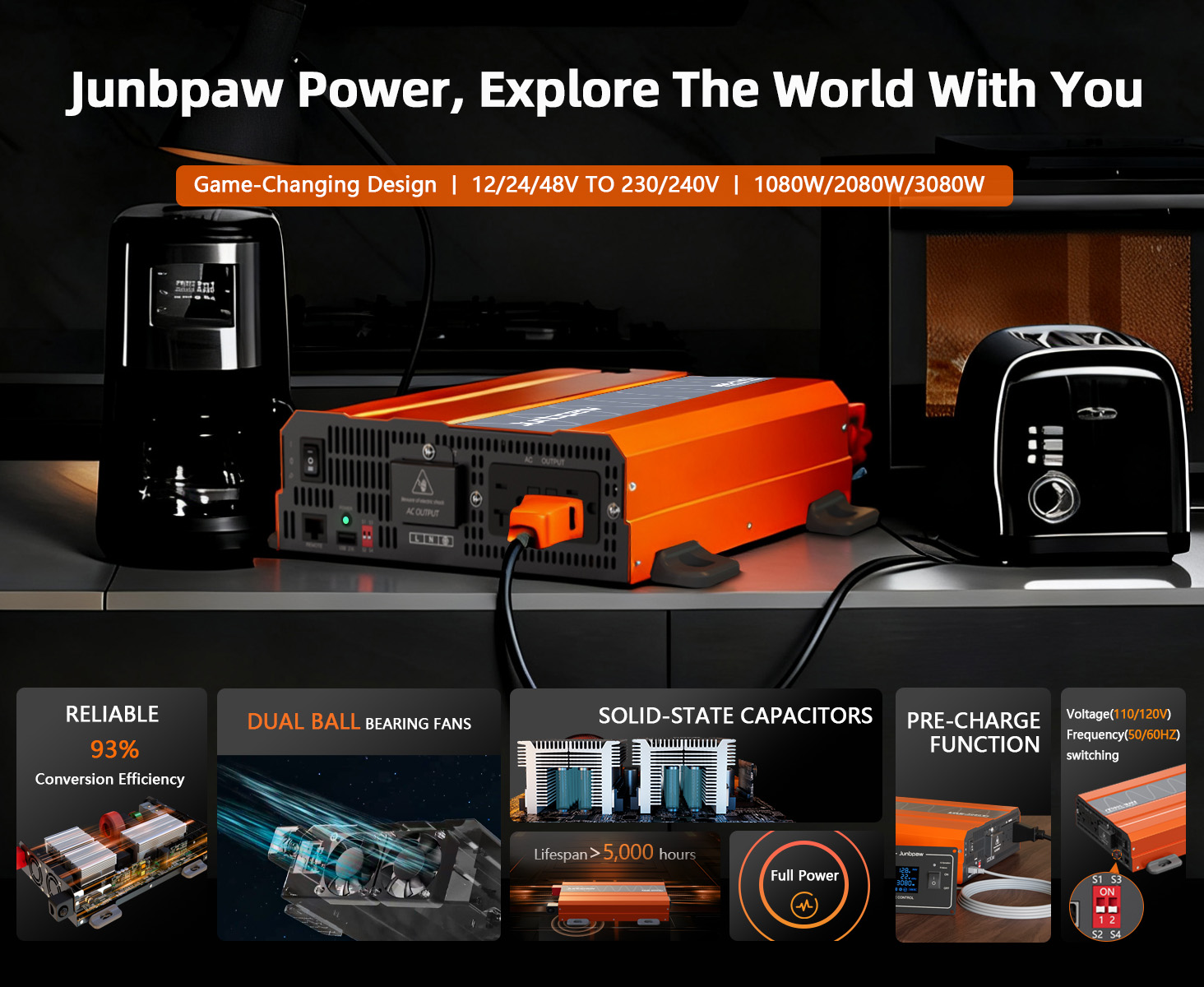

Junbpaw LGE-Ti Series 3000W Pure Sine Wave Car Power Inverter

【3080W Continuous Rated Power】The Junbpaw DC 12V/24V/48V to AC 230V/240V inverter delivers a continuous 3080W output with 93% conversion efficiency, supporting surge power up to 9000W for demanding applications.
The pre-charge function of the inverter eliminates the demand for high instantaneous current from the BMS during startup. Built-in Dual Protection (AC/DC), Even if insects ingress causes IGBT burnout, the inverter itself remains undamaged, eliminating risks of smoking or fire hazards.
【Pure Sine Wave Output】Junbpaw’s advanced pure sine wave technology generates stable AC power comparable to grid electricity, protecting sensitive electronics and extending the lifespan of connected devices.
【Voltage and Frequency Switching】Junbpaw features professional-grade inverter capabilities, supporting easy switching between 230V/240V voltage and 50Hz/60Hz frequency. This ensures compatibility with various power requirements, delivering a stable and efficient user experience.
【High-Performance Solid-State Capacitors】The Junbaw 3080W inverter utilizes high-quality solid-state capacitors, making it ideal for high-temperature, high-load environments. It is less prone to power fluctuations from temperature changes, ensuring a longer lifespan.
【Dual Ball-bearing Fans】The Junbpaw pure sine wave inverter built-in dual ball-bearing fans ensure quieter performance, an extended lifespan, and stable operation for over 50,000 hours.
【Cooling Airflow Path】By optimizing the layout and configuration of components on the PCB, a perfect cooling airflow channel is formed.
【Bus Bar Connect Design】Junbpaw inverters adopt a bus bar connection system that replaces conventional cables, enhancing safety,boosting efficiency, and achieving a more compact design.
【Enhanced Safety Features】Equipped with Ground-Fault Circuit Interrupter (GFCI) technology, with under-voltage and over-voltage protection, over-temperature protection, overload protection, and short-circuit protection.

Output Voltage:220/230/240V

Rated power 3080W

Junbpaw - the simplest overland electrical system

Compact and High efficiency 12V to 120V pure sine wave inverter 3000W

Wall Mounting
Save Space

Long Lasting
Performance

Friendly to Electrlcal
Appliances

Wireless screen

Compatible with
Various Batteries

Discription of Ports and components

Host Machine

Packing List

LGE-3080Ti Inverter

Power Cord

LCD Display

Remote Key

User Manual

Junbpaw Pure Sine Wave Inverter Manufacturer

Experience:
We are factory,with more than 10 years of inverter manufacturing experience.
Quality:
High-efficiency conversion: Our inverter conversion efficiency can reach 90% above with the defect rate is less than 3%.
High-quality materials and heat dissipation: High-quality capacitors, inductors, and power tubes enable the inverter to run at full load for a long time. The superior heat dissipation system can prevent the inverter from overheating, avoiding performance degradation and component damage caused by high temperature.
Circuit design: The circuit board layout is reasonable and compact, pure sine wave with THD<3%.
Comprehensive protection: With overvoltage, overcurrent, overheating, undervoltage, short circuit, and reverse polarity protection.

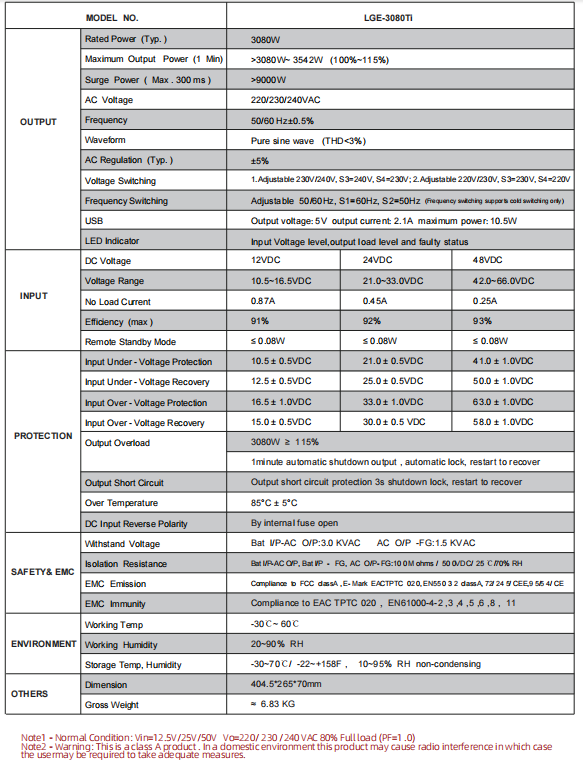

MODEL NO.		LGE-3080Ti
OUTPUT	Rated Power(Typ.)	3080W
	Maximum Output Power (1 Min)	>3080W~3542W(100%~115%)
	Surge Power(Max.300 ms)	>9000W
	AC Voltage	220/230/240VAC
	Frequency	50/60 Hz±0.5%
	Waveform	Pure sine wave(THD<3%)
	AC Regulation(Typ.)	±5%
	Voltage Switching	1.Adjustable 230V240V,S3=240V,S4=230V;2.Adjustable 220V230V,S3=230V,S4=220V
	Frequency Switching	Adjustable 50/60Hz S1=60Hz,S2=50Hz (Frequency switching supports cold switching only)
	USB	Output voltage:5V output current:2.1A maximum power:10.5W
	LED Indicator	Input Voltage level,output load level and faulty status.
INPUT	DC Voltage	12VDC	24 VDC	48 VDC
	Voltage Range	10.5~16.5VDC	21.0~33.0VDC	42.0~66 .0VDC
	No Load Current	0.87A	0.45A	0.25A
	Efficiency (max)	91%	92%	93%
	Remote Standby Mode	≤0.08W	≤0.08W	≤0.08W
PROTECTION	Input Under -Voltage Protection	10.0±0.5VDC	21.0±0.5VDC	41.0±1.0VDC
	Input Under -Voltage Recovery	12.5±0.5VDC	25.0±0.5VDC	50.0±1.0VDC
	Input Over -Voltage Protection	16.5±1.0VDC	33.0±1.0VDC	63.0±1.0VDC
	Input Over -Voltage Recovery	15.0±0.5VDC	30.0±0.5VDC	58.0±1.0VDC
	Output Overload	3080W≥115%
		1minute automatic shutdown output,automatic lock,restart to recover
	Output Short Circuit	Output short circuit protection3s shutdown lock,restartto recover
	Over Temperature	85℃±5 ℃
	DC Input Reverse Polarity	By internal fuse open
SAFETY&EMC	Withstand Voltage	Bat I/P-AC O/P:3.0 KVAC AC O/P -FG:1.5 KVAC
	Isolation Resistance	Bat IVP-AC O/P,Bat IVP -FG,AC O/P-FG:100M ohms /500VDC/25 C/70%RH
	EMC Emission	Compliance to FCC cassA,E-Mark EACTPTC 020,EN55032 classA,72/245/CEE,95/54/CE
	EMC Immunity	Compliance to EAC TPTC 020,EN61000-4-2,3,4,5,6,8,11
ENVIRONMENT	Working Temp	-30℃~60℃
	Working Humidity	20~90%RH
	StorageTemp,Humidity	-30~70℃I-22~+158F,10~95%RH non-condensing
OTHERS	Dimension	404.526570mm
	Gross Weight	≈6.83 KG

Frequently Asked Questions

Fregquently asked questions, we have integrated them into a self-service Q&A lfyou have other questions, please leave us a message.

Can I use the inverter with a 24V system?

No. This is 12V inverter, so this model can only work with 12V battery system.

Can I use this 12V inverter to charge my batteries?

No. The Renogy 12VDC to 230/240VAC inverter can only convert DC power to AC power. Please check the Renogy Pure Sine Wave Inverter Charger, and we have 12V 2000W and 3000W for your options.

How do I hook up the 12V to 240V inverter? What size cable should I use, and is it included?

When connecting the power inverter 12V to 240V to the battery always use the thickest wire available, in the shortest length practical. 20mm²*6m cables with battery terminals is included in the pacakge.

Can I use this inverter to charge my batteries?

No. This inverter only provides 12V to 230/240V conversion. Please find more with Inverter Charger.

Can this 12V to 240V inverter work with lithium batteries?

Yes, as long as the lithium battery is rated for 12V applications.

Learn about Green Light.

Go to the company introduction page.

Learn about Green Light.

Go to the company introduction page.

Verified Purchase

Leistungsstarker Wechselrichter – zuverlässig und empfehlenswert

Reviewed in Germany on 20 August 2025

Vorwort: Ich nutze diesen Wechselrichter derzeit auf meinem Boot.

Produktbewertung:
Wir sind mit diesem Wechselrichter sehr zufrieden. Die Bedienungsanleitung ist klar und leicht verständlich, und die Funktionen entsprechen genau der Beschreibung. Als Test habe ich damit einen Wassertank auf dem Boot erhitzt – das hat hervorragend funktioniert. Selbst wenn die Batteriespannung unter 10,5V fällt, arbeitet er weiter, nur mit einem Warnton. Wie man weiß, können Blei-Säure-Batterien (wie wir sie verwenden) kurzzeitig auf 10,5V absinken, ohne Schaden zu nehmen. Sobald die Last abgeschaltet wird, steigt die Spannung in der Regel wieder auf über 12V.

Besonders praktisch finde ich das kabelgebundene Fernbedienungs-Display. Da ich den Wechselrichter in einer eher unzugänglichen Ecke installiert habe, muss ich nicht ständig dorthin laufen. Auf dem Display sind Batteriekapazität, Spannung, Leistung und Frequenz klar und übersichtlich ablesbar.

Verified Purchase

Great Choice for my Camper Van Build

Reviewed in the United Kingdom on 5 September 2025

I purchased this for a camper van build. So far it has worked great. There are a few things to consider when purchasing a power inverter.

First would be size. Look at the components that you intend to use and make sure that you choose an inverter with adequate wattage. For my van this inverter powers my induction cooktop and is also wired to two standard electric outlets. My cooktop requires 1800 total watts which seems to be pretty standard give or take.

Second thing that was important in choosing an inverter was the remote LED control. Inverters are going to be drawing power from your battery any time they are turned on regardless of if you are using them to power devices or not, so you do not want them on all the time. This inverter has a nice looking remote LED control that I added to my master switch panel. The reason this was very important is because my inverter is located inside my storage area and is not easily assessable. The LED display comes with plenty of wire to run it anywhere in the vehicle.

Third would be noise level. All inverters have cooling fans and some can be very noisy. This inverter has a very quiet fan. I doubt I will ever be able to even hear it running from the cargo area.

All things considered I am really pleased with this purchase. The inverter works well and was well designed.

Verified Purchase

Top Wechselrichter – zuverlässig und jeden Euro wert!

Reviewed in Germany on 20 August 2025

Seit ich dieses Gerät installiert habe und auf saubere Energie umgestiegen bin, beschwere ich mich nicht mehr über die hohen Stromkosten.

Und genau dieses Modell ist der beste Wechselrichter, den ich je benutzt habe. Zwar ist Junbpaw in Deutschland noch eine neue Marke, aber ich habe mir vor dem Kauf extra die Verkaufsseite in den USA angesehen – die Bewertungen dort waren hervorragend. Das hat mich überzeugt, und ich habe die richtige Entscheidung getroffen.

Er liefert die volle Ausgangsleistung, arbeitet mit stabiler Spannung, lässt sich sogar zwischen 230V und 240V umschalten und bleibt auch bei Volllast im Dauerbetrieb erstaunlich kühl.

Ich kann diesen Wechselrichter nur wärmstens empfehlen – er ist jeden Euro wert!

Verified Purchase

Perfekter Wechselrichter für Camper – leise, stark und zuverlässig

Reviewed in Germany on 20 August 2025

Ich habe diesen Wechselrichter für den Umbau meines Campervans gekauft, und bisher funktioniert er absolut zuverlässig. Beim Kauf eines Wechselrichters sollte man einige Punkte beachten:

1. Leistung und Größe
Prüfen Sie vorher genau, welche Geräte Sie betreiben möchten, und wählen Sie einen Wechselrichter mit ausreichender Leistung. In meinem Camper versorgt er mein Induktionskochfeld (Gesamtleistung 1800W – recht typisch) sowie zwei Standard-Steckdosen ohne Probleme.

2. Fernschalter
Für mich ein sehr wichtiger Punkt. Dieser Wechselrichter verfügt über einen schön gestalteten Fernschalter, den ich in mein Haupt-Bedienpanel integriert habe. Da der Wechselrichter im Stauraum eingebaut ist und nur schwer zugänglich wäre, ist diese Lösung perfekt. Das Kabel ist lang genug, um den Schalter an fast jeder Stelle im Fahrzeug anzubringen. Außerdem zeigt das Display alle relevanten Betriebsparameter übersichtlich an.

3. Geräuschpegel
Alle Wechselrichter haben Lüfter, die bei einigen Geräten recht laut sein können. Dieser hier ist angenehm leise – ich höre ihn im Kofferraum praktisch überhaupt nicht.

Fazit
Insgesamt bin ich mit diesem Kauf sehr zufrieden. Der Wechselrichter arbeitet zuverlässig, ist hochwertig verarbeitet und bestens durchdacht – ideal für meinen Campervan.
