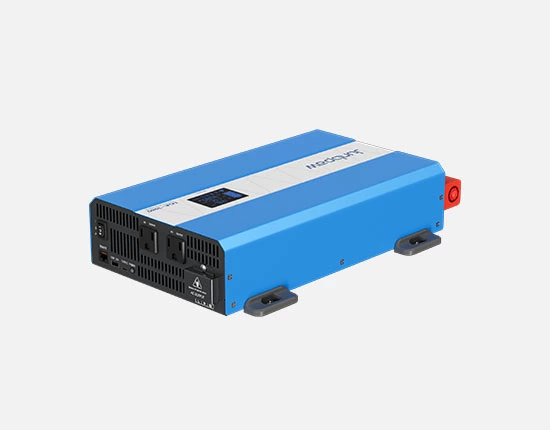

LGE 3000W Car Power Pure Sine Wave Inverter

High Power: Offers 3080W continuous

High Surge: up to 9000W peak;

Low no-load: Less than 10W

High Efficient: Over 90% efficiency;

Versatile Outlets: Includes 2x 110V AC and 1x USB port;

Advanced Safety: Protects against electrical issues;

Smart Cooling: Silent fan for temperature control;

Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage;

Output protection: Short Circuit / Overload / Over Temperature;

Strong load adaptability: inductive/ capacitive/ resistive/ mixed load;

Wide Applications: Ideal for RVs, trucks, and emergencies;

User-Friendly: Optional remote control panel.

Durable Build: Long-lasting performance.

Contact Now

+ Inquire

Downloads

Description

Specification

FAQ

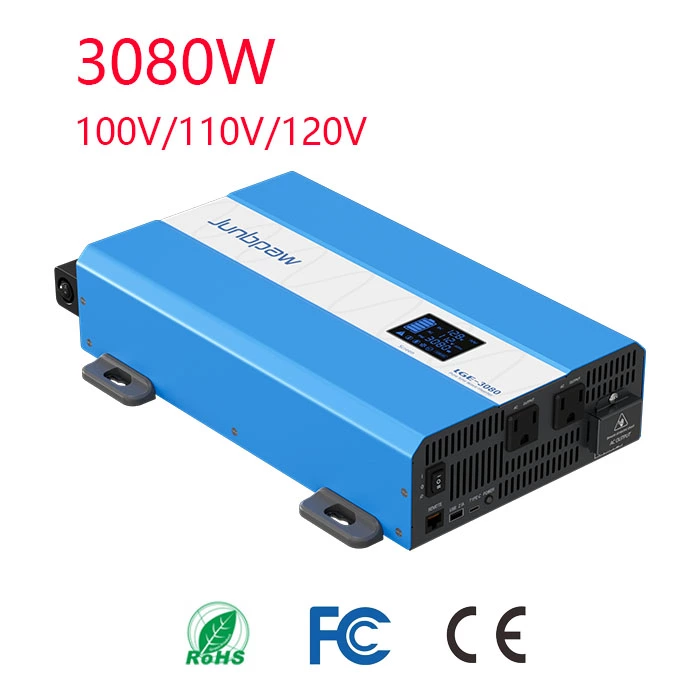

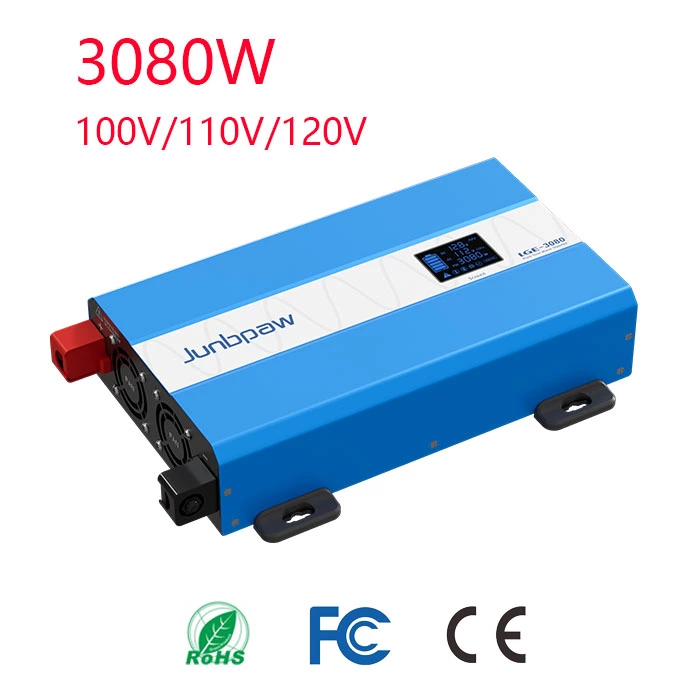

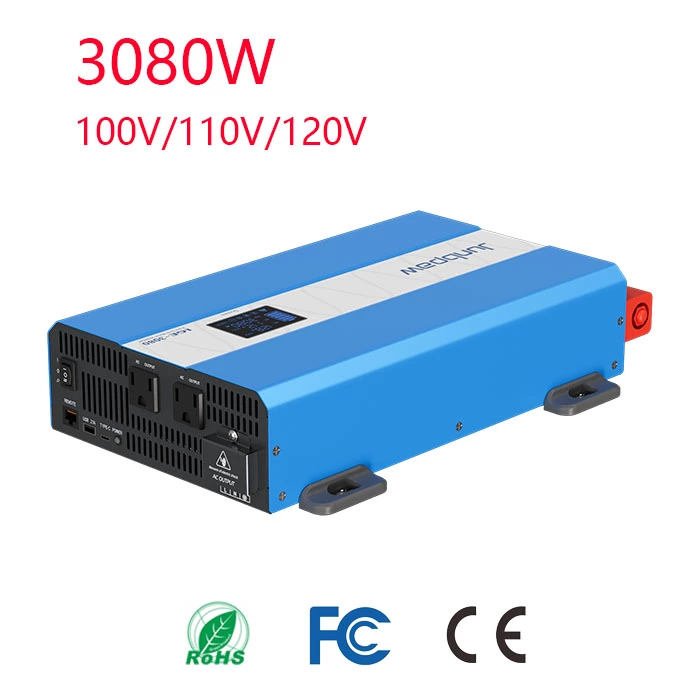

Junbpaw LGE-Series 3000W Pure Sine Wave Car Power Inverter

【3080W Continuous Rated Power Inverter】The Junbpaw DC 12V/24V/48V to AC 100V/110V/120V inverter delivers a continuous 3080W output with 93% conversion efficiency, supporting surge power up to 6000W for demanding applications.
【Ultra-quiet Pure Sine Wave Inverter】 Featuring innovative noise reduction technology, our ultra-quiet operation reaches as low as 30dB, ensuring an undisturbed environment for focused work, deep sleep, or private conversations - delivering a tranquil living experience.
【3080 Watt Pure Sine Wave Inverter】Junbpaw utilizes advanced pure sine wave technology to deliver stable AC power, equivalent to grid quality, safeguarding and prolonging the lifespan of your electronics and appliances.

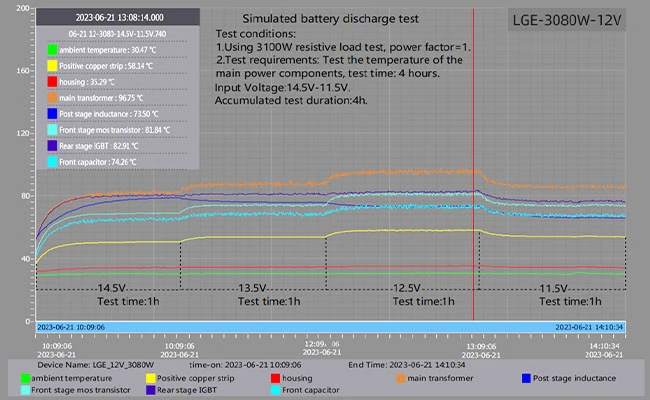

【Cooling Airflow Path】By optimizing the layout and configuration of components on the PCB, a perfect cooling airflow channel is formed.
【Bus Bar Connect Design】Junbpaw inverters adopt a bus bar connection system that replaces conventional cables, enhancing safety,boosting efficiency, and achieving a more compact design.
【All-round Safety Protections】The Junbpaw Inverter ensures all-around safety with over-voltage, low-voltage, overheat, overload, and short-circuit protections, safeguarding both your devices and the system.
【Pre-charge Function】The pre-charge function of the inverter eliminates the demand for high instantaneous current from the BMS during startup. Built-in Dual Protection (AC/DC), even if insects ingress causes IGBT malfunction, the inverter has no risk of smoking or fire hazards.

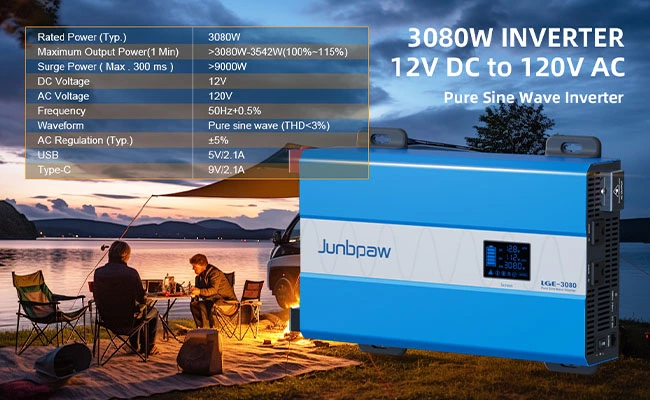

Output Voltage: 100/110/120V

Rated power 3080W

Junbpaw - the simplest overland electrical system

Compact and High efficiency 12V to 120V pure sine wave inverter 3000W

Wall Mounting
Save Space

Long Lasting
Performance

Friendly to Electrlcal
Appliances

Wireless screen

Compatible with
Various Batteries

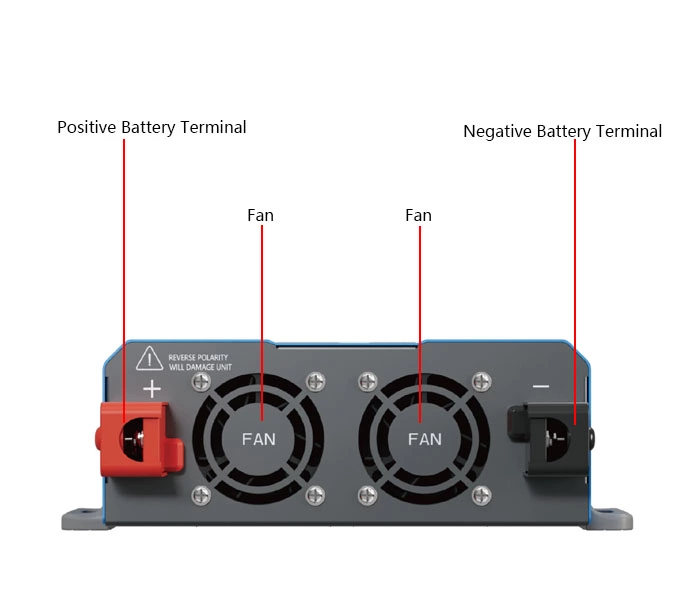

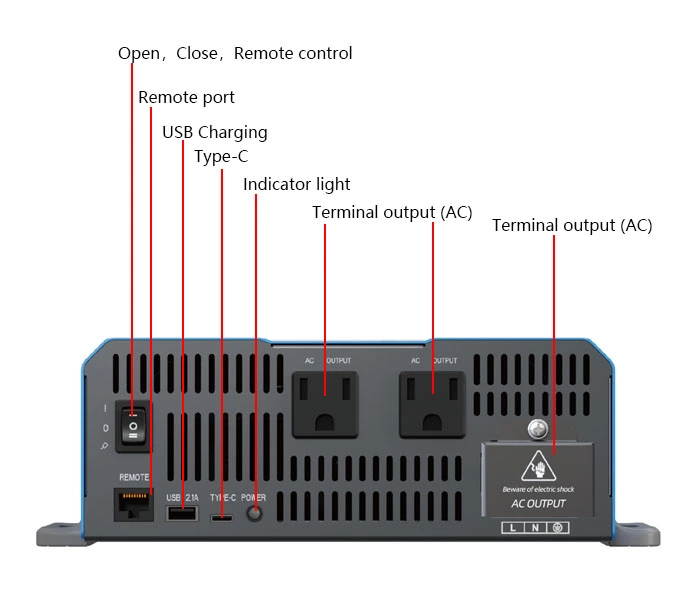

Discription of Ports and components

Host Machine

Packing List

LGE-3080Ti Inverter

Power Cord

LCD Display

Remote Key

User Manual

Junbpaw Pure Sine Wave Inverter Manufacturer

Experience:
We are factory,with more than 10 years of inverter manufacturing experience.
Quality:
High-efficiency conversion: Our inverter conversion efficiency can reach 90% above with the defect rate is less than 3%.
High-quality materials and heat dissipation: High-quality capacitors, inductors, and power tubes enable the inverter to run at full load for a long time. The superior heat dissipation system can prevent the inverter from overheating, avoiding performance degradation and component damage caused by high temperature.
Circuit design: The circuit board layout is reasonable and compact, pure sine wave with THD<3%.
Comprehensive protection: With overvoltage, overcurrent, overheating, undervoltage, short circuit, and reverse polarity protection.

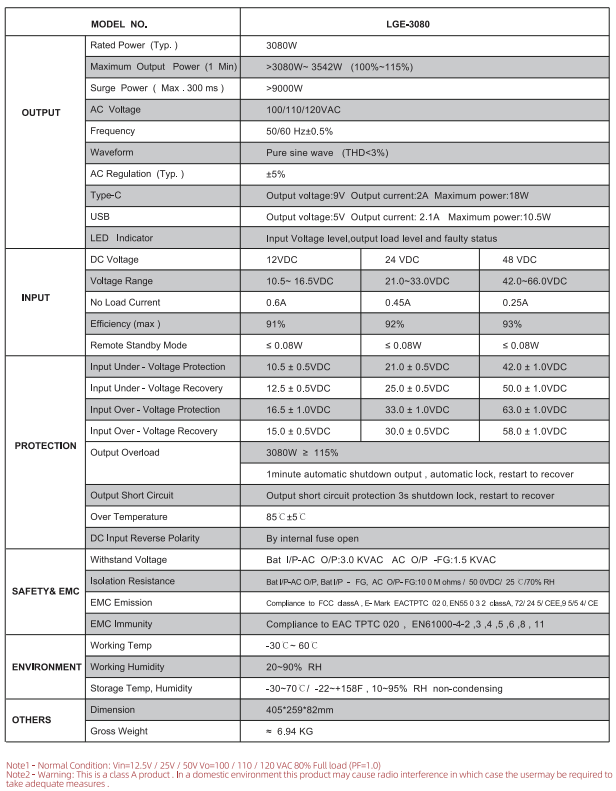

MODEL NO.		LGE-3080
OUTPUT	Rated Power(Typ.)	3080W
	Maximum Output Power (1 Min)	>3080W~3542W(100%~115%)
	Surge Power(Max.300 ms)	>9000W
	AC Voltage	100/110/120VAC
	Frequency	50/60 Hz±0.5%
	Waveform	Pure sine wave(THD<3%)
	AC Regulation(Typ.)	±5%
	Voltage Switching	1.Adjustable 230V240V,S3=240V,S4=230V;2.Adjustable 220V230V,S3=230V,S4=220V
	Frequency Switching	Adjustable 50/60Hz S1=60Hz,S2=50Hz (Frequency switching supports cold switching only)
	USB	Output voltage:5V output current:2.1A maximum power:10.5W
	LED Indicator	Input Voltage level,output load level and faulty status.
INPUT	DC Voltage	12VDC	24 VDC	48 VDC
	Voltage Range	10.5~16.5VDC	21.0~33.0VDC	42.0~66 .0VDC
	No Load Current	0.6A	0.45A	0.25A
	Efficiency (max)	91%	92%	93%
	Remote Standby Mode	≤0.08W	≤0.08W	≤0.08W
PROTECTION	Input Under -Voltage Protection	10.0±0.5VDC	21.0±0.5VDC	41.0±1.0VDC
	Input Under -Voltage Recovery	12.5±0.5VDC	25.0±0.5VDC	50.0±1.0VDC
	Input Over -Voltage Protection	16.5±1.0VDC	33.0±1.0VDC	63.0±1.0VDC
	Input Over -Voltage Recovery	15.0±0.5VDC	30.0±0.5VDC	58.0±1.0VDC
	Output Overload	3080W≥115%
		1minute automatic shutdown output,automatic lock,restart to recover
	Output Short Circuit	Output short circuit protection3s shutdown lock,restartto recover
	Over Temperature	85℃±5 ℃
	DC Input Reverse Polarity	By internal fuse open
SAFETY&EMC	Withstand Voltage	Bat I/P-AC O/P:3.0 KVAC AC O/P -FG:1.5 KVAC
	Isolation Resistance	Bat IVP-AC O/P,Bat IVP -FG,AC O/P-FG:100M ohms /500VDC/25 C/70%RH
	EMC Emission	Compliance to FCC cassA,E-Mark EACTPTC 020,EN55032 classA,72/245/CEE,95/54/CE
	EMC Immunity	Compliance to EAC TPTC 020,EN61000-4-2,3,4,5,6,8,11
ENVIRONMENT	Working Temp	-30℃~60℃
	Working Humidity	20~90%RH
	StorageTemp,Humidity	-30~70℃I-22~+158F,10~95%RH non-condensing
OTHERS	Dimension	40525982mm
	Gross Weight	≈6.94 KG

Frequently Asked Questions

Fregquently asked questions, we have integrated them into a self-service Q&A lfyou have other questions, please leave us a message.

Can I use the inverter with a 24V system?

No. This is 12V inverter, so this model can only work with 12V battery system.

Can I use this 12V inverter to charge my batteries?

No. The Renogy 12VDC to 230/240VAC inverter can only convert DC power to AC power. Please check the Renogy Pure Sine Wave Inverter Charger, and we have 12V 2000W and 3000W for your options.

How do I hook up the 12V to 240V inverter? What size cable should I use, and is it included?

When connecting the power inverter 12V to 240V to the battery always use the thickest wire available, in the shortest length practical. 20mm²*6m cables with battery terminals is included in the pacakge.

Can I use this inverter to charge my batteries?

No. This inverter only provides 12V to 230/240V conversion. Please find more with Inverter Charger.

Can this 12V to 240V inverter work with lithium batteries?

Yes, as long as the lithium battery is rated for 12V applications.

Learn about Green Light.

Go to the company introduction page.

Learn about Green Light.

Go to the company introduction page.

Verified Purchase

Powerful & Quiet — Great Value with Minor Caveats

Reviewed in the United States on September 18, 2025

I’ve been using this Junbpaw 3080W pure sine wave inverter for RV and off-grid setups, and it performs very well. Here’s a quick snapshot:

Pros:
• Pure sine wave output — clean power for sensitive electronics.
• Quiet operation — 30 dB claimed, and moderate loads are very quiet.
• High surge capacity — handles startup loads for motors and appliances.
• Efficient & safe — good conversion efficiency and built-in protections.
• Solid build — dual fans keep it cool under moderate load, feels robust.

Cons:
• Noise under heavy loads — fans ramp up noticeably when pushing near maximum.
• Wiring & battery requirements — thick cables and strong battery bank needed for best performance.
• Documentation — instructions could be clearer for first-time installers.
• Long-term durability — limited long-term feedback; fan bearings and thermal components may need monitoring.

Overall, this inverter is a strong performer at a great price. Not quite premium, but excellent for RV, camping, or backup power with proper setup.

Verified Purchase

Beast!

Reviewed in the United States on August 10, 2025

This inverter is an absolute machine! That said, you're not going to be able to connect this to a single lead acid battery and expect it to not trip the low voltage protection. This inverter pulls over 250 amps at 3000 watts of load! I have a set of four 12 volt LiFePO4 packs in parallel with a maximum output of 400 amps; each having a BMS with a maximum current limit of 100 amps. This inverter was working them hard! The cables it comes with are a little small (2 AWG) for such a large amount of current, so plan on getting something a little more substantial if you plan on running this inverter at peak for long times.

The inverter has an impressively low idle power draw of just under 10 watts. I would expect higher with an inverter this size. The multiple cooling fans have good airflow without much noise. I've used much louder inverters, this one is definitely one of the best for noise.

The design of the case is robust. The mounting feet are rubberized; which is nice for vibration isolation if you're using this in mobile setups.

It comes with a wired remote. The remote is simple but has a lot of good information; like battery charge level (volt meter), wattage consumption, and a status light showing green or red for good or fault. It comes with a long Cat 5 cable for connecting the remote to the inverter.

At $200 dollars, this inverter is a very good value. The features, build quality, output wattage, and low idle drain make this a very nice inverter for such a price.

So far, this inverter has functioned well for me for a couple weeks running typical appliances. I haven't tried anything high load, like an air conditioner, but I feel that it will be able to handle the inrush current without any issues.

Verified Purchase

good quiet cooling, good cables, solid power

Reviewed in the United States on September 5, 2025

This inverter is far better than old one I am replacing on my boat. It is a good fit for the purpose ; the boat uses a 30 amp AC connection to shore power. The unit is very heavy and rather large. That's a good thing since heat sinks and good cases are heavy. I do recommend measuring the installation area since in my case it is quite a bit larger.
The build quality is excellent and the connections and cables are all first rate.

Verified Purchase

Excellent buy!

Reviewed in the United States on August 20, 2025

I really wanted the 24v model but budget constraints kept me at 12v. In the end, it makes no difference because this inverter delivers strong output throughout its operating range.
