T3 Vehicle Mounted Energy Storage System

1.Simplest and most compact design,more space for user.

2.Host Inverter:DC-DC Dual charger,MPPT controller and pure sine wave inverter all packed in one box.

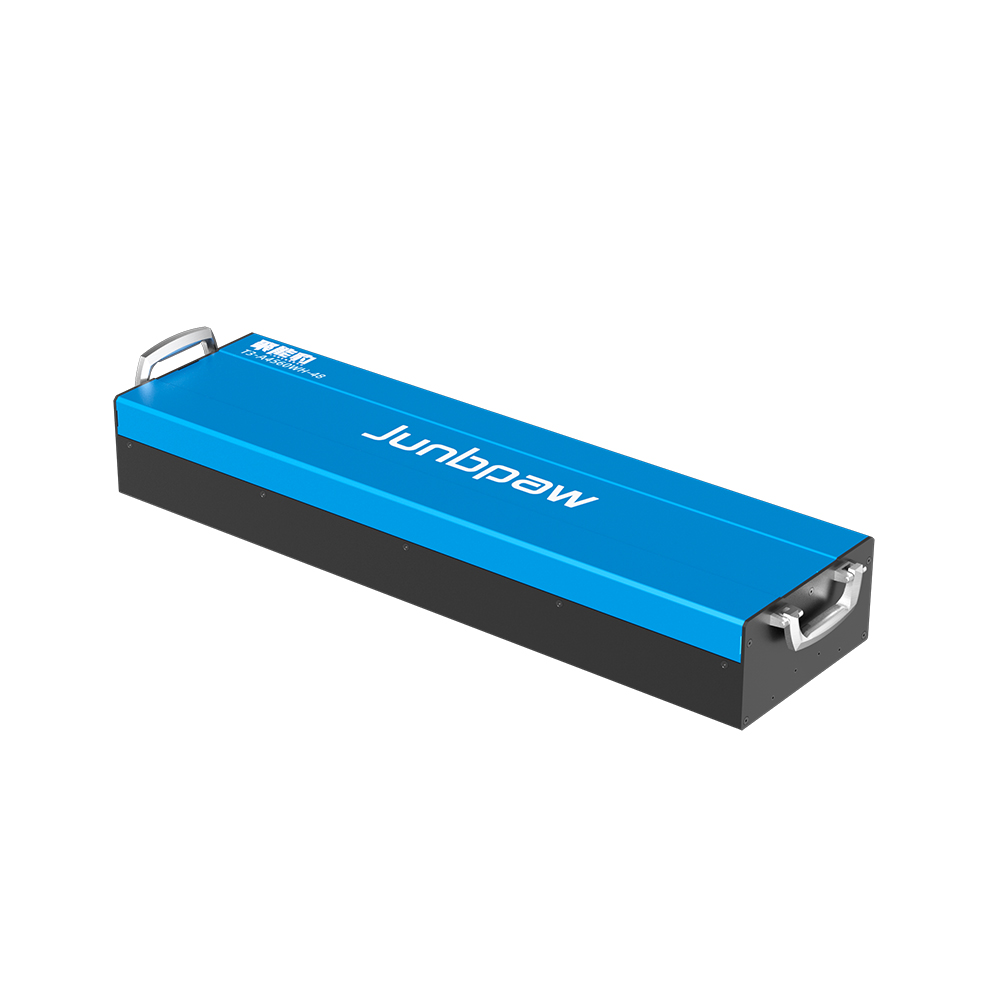

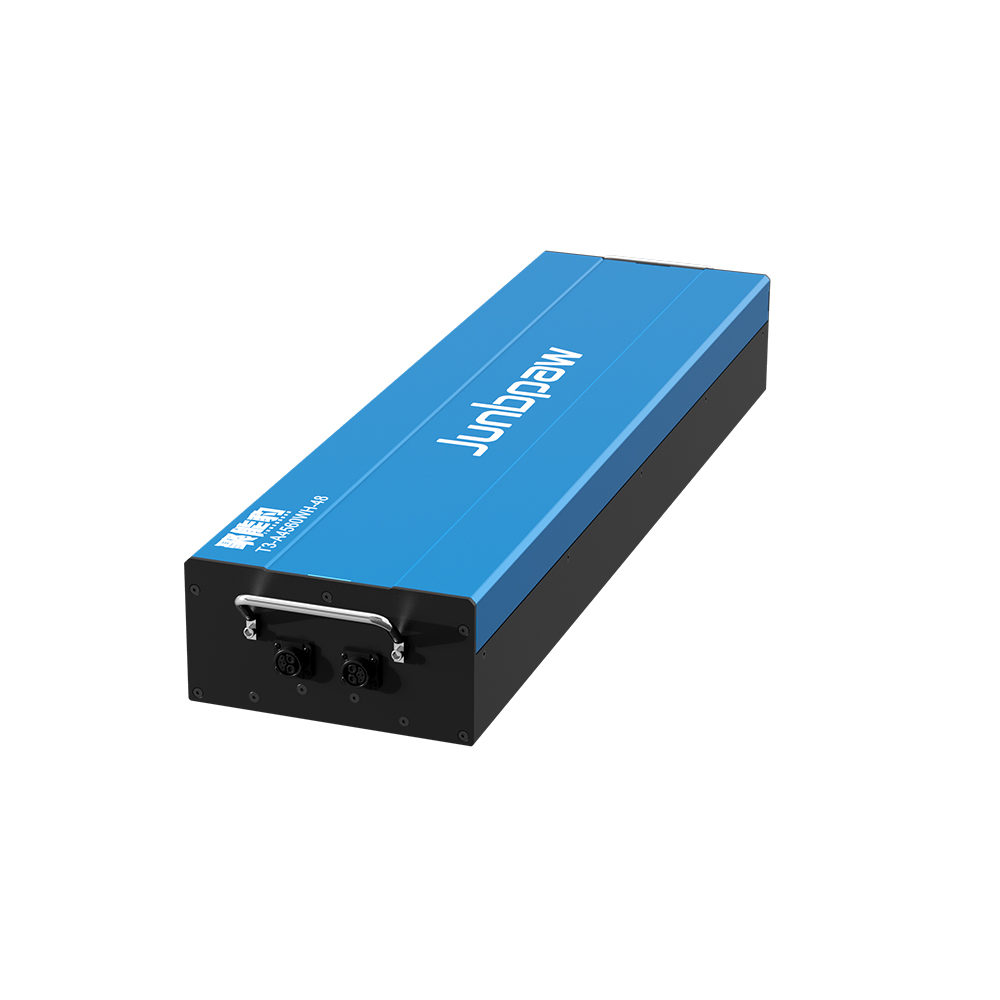

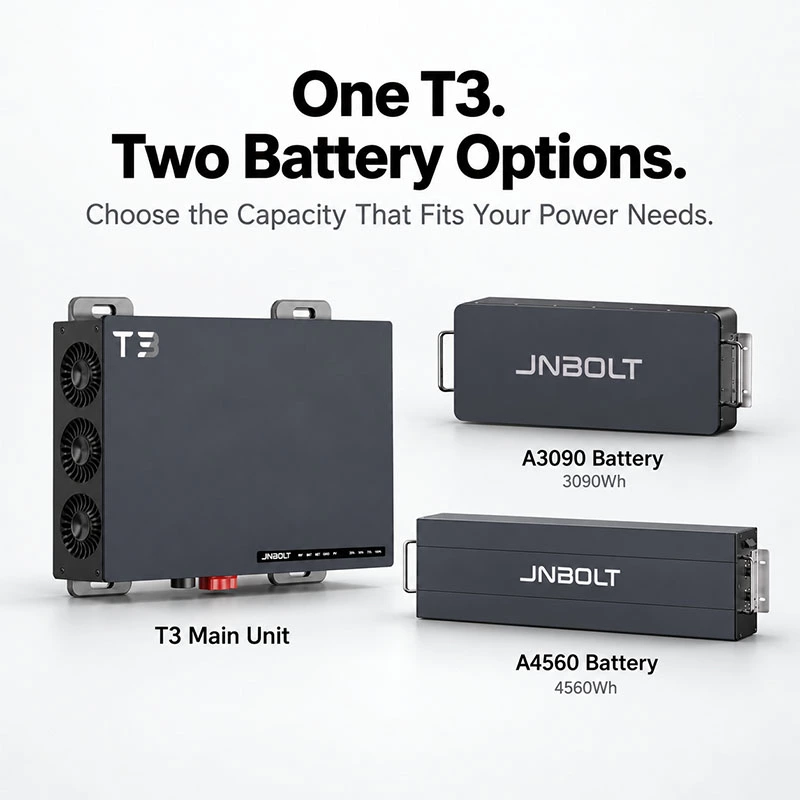

3.Battery(T3-A4560):Adopt the battery of BYD,can be stackable to 14.5KWH.

4.Intelligent DC-DC dual charging with Auxiliary battery charging&Start battery backcharge to protect the auxiliary battery and Alternator.

5.Solar Charging：Automatically verify the PV voltage,efficiency over 99%.

6.Cooling:Intelligently control the fan speed according to the temperature and loads.

7.Easy to install,just Plug and Play.

Contact Now

+ Inquire

Downloads

Description

Specification

FAQ

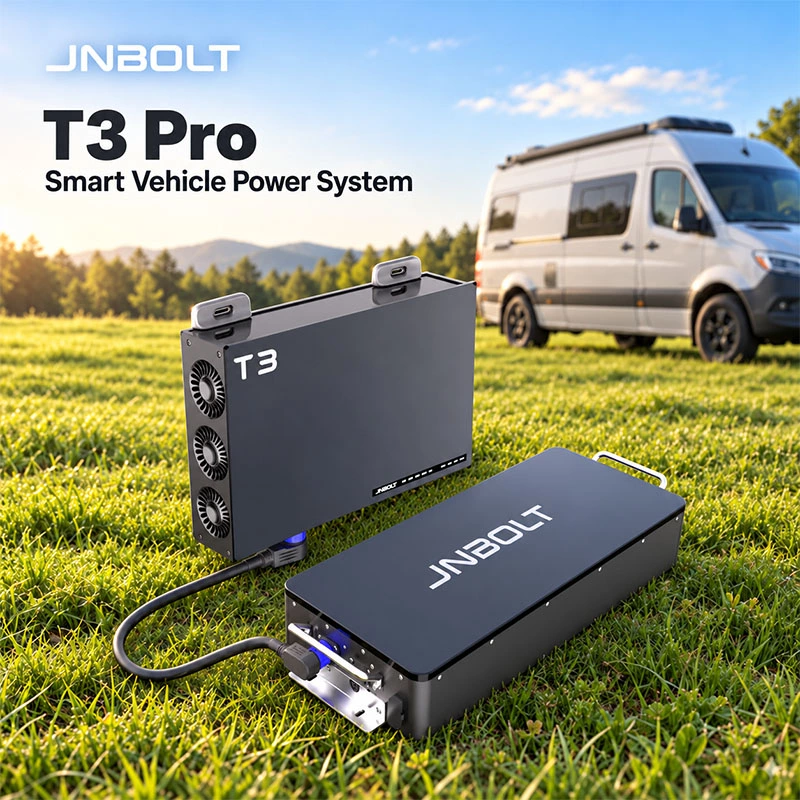

T3 Vehicle Mounted Energy Storage System

1. BYD LifePO4 battery capacity 4596WH, ensuring long-term stable power supply

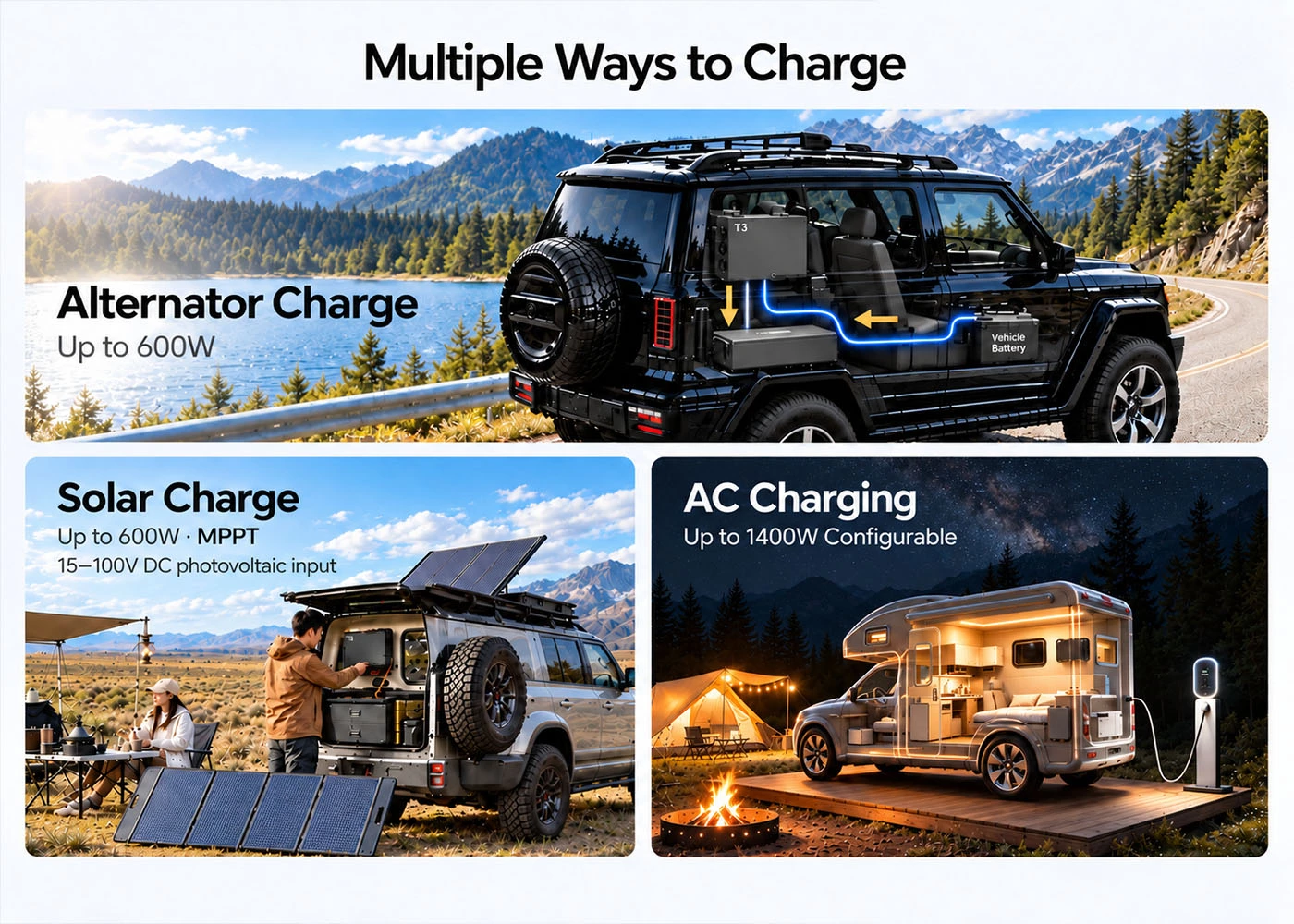

2. Multiple charging methods, driving charging, solar charging, mains charging, keep the power sufficient at any time

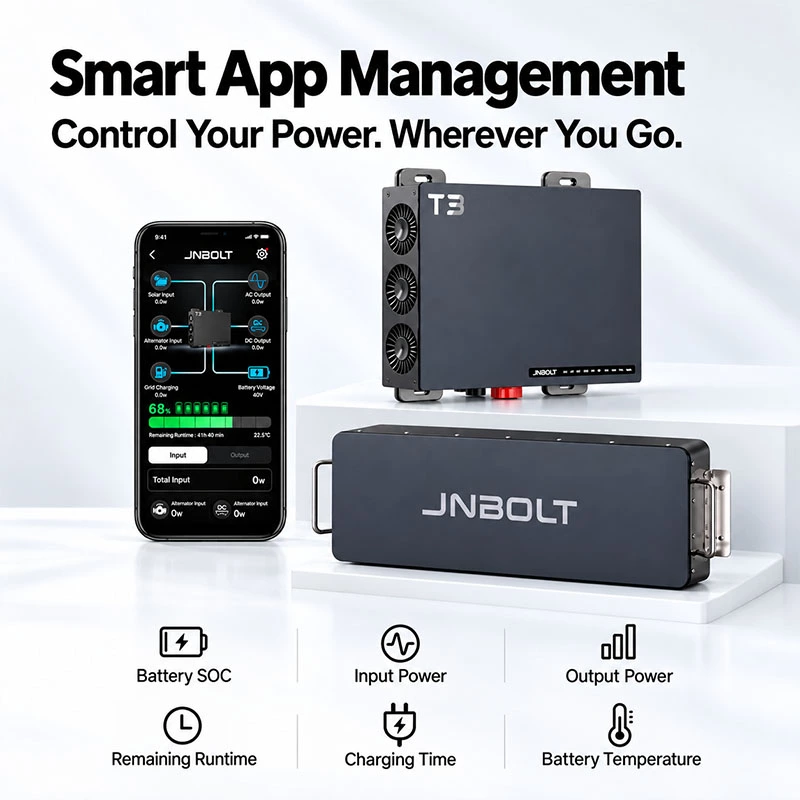

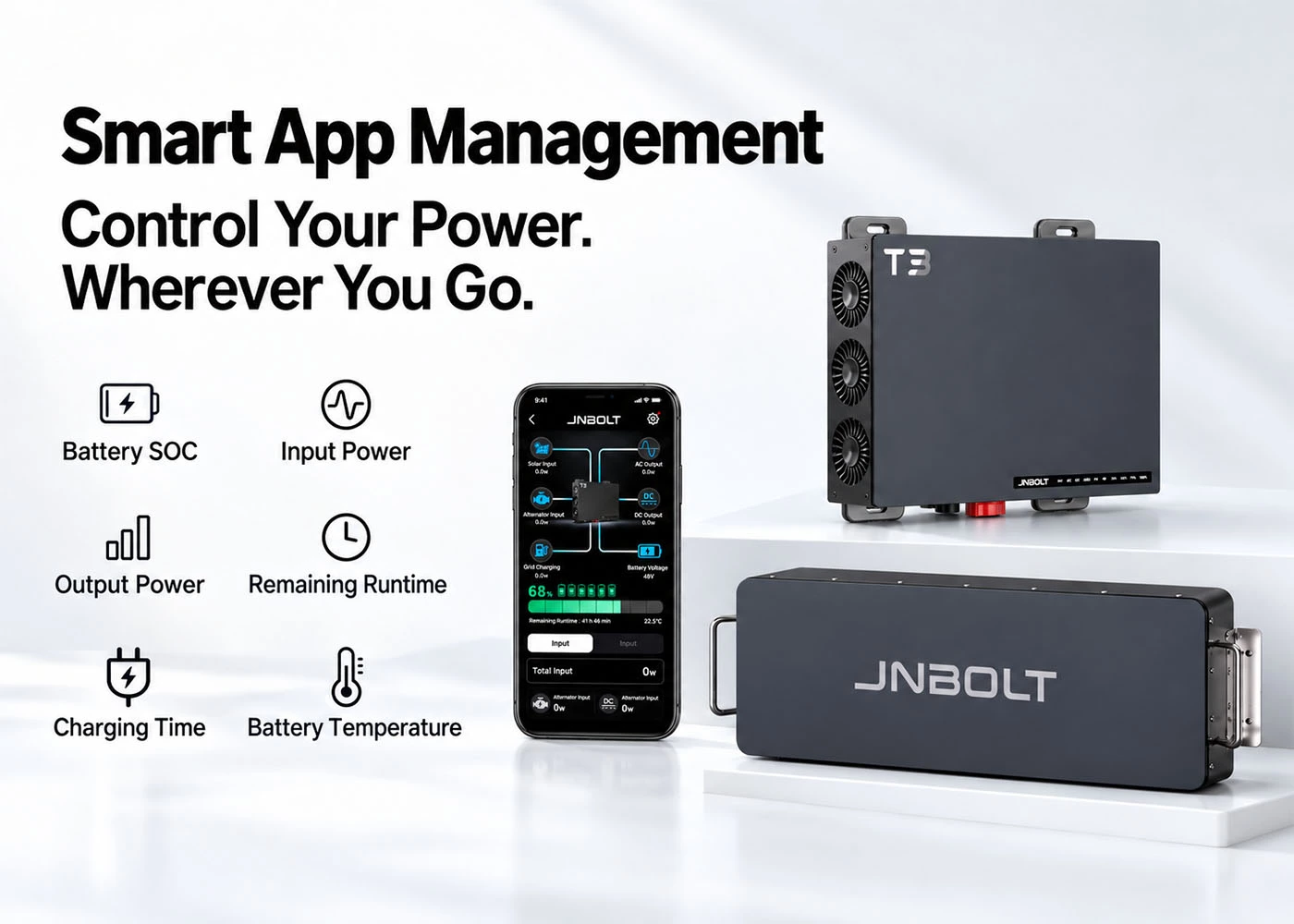

3. Intelligent management system, real-time monitoring of battery status, remote control can be achieved through mobile phone APP or wireless screen
4. Wide range of application scenarios, self-driving travel, outdoor camping, emergency rescue, etc.

Output Voltage: 220/230/240V

Rated power 2500w

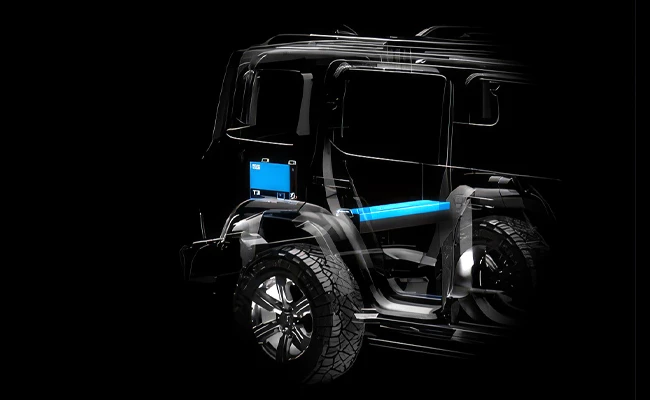

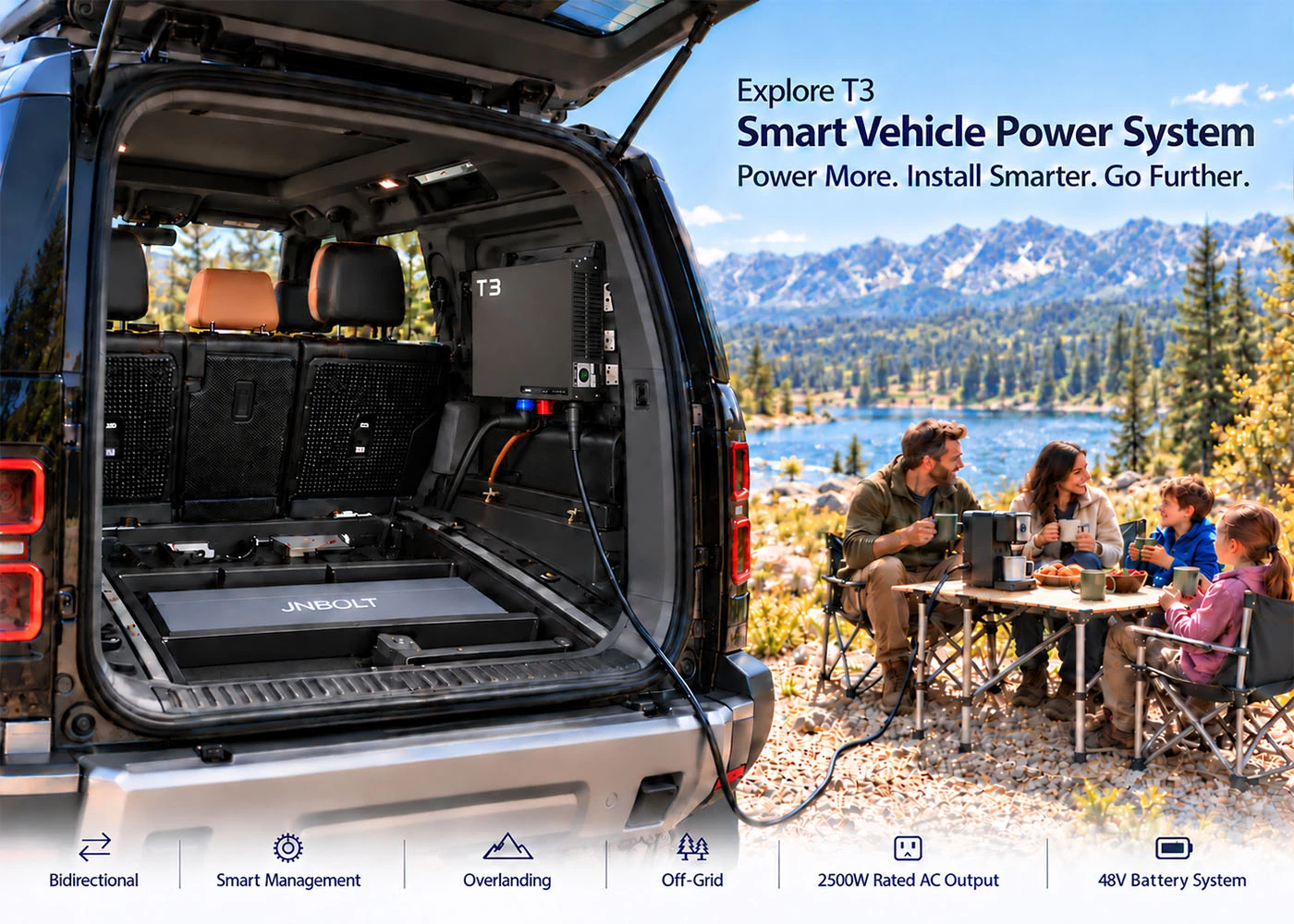

Your car's energy storage is your ticket to anywhere

48V all in one vehicle outdoor power supply solution

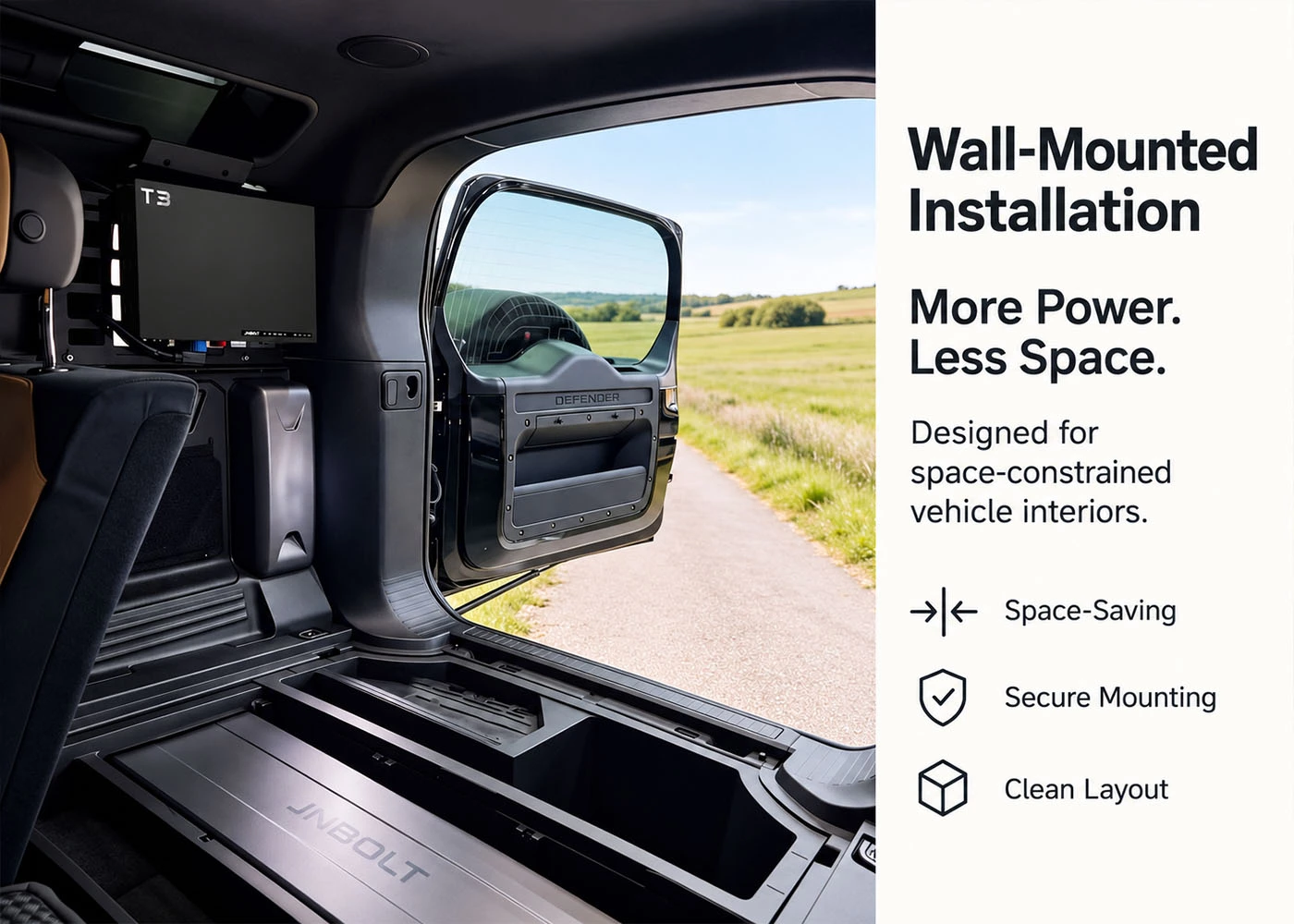

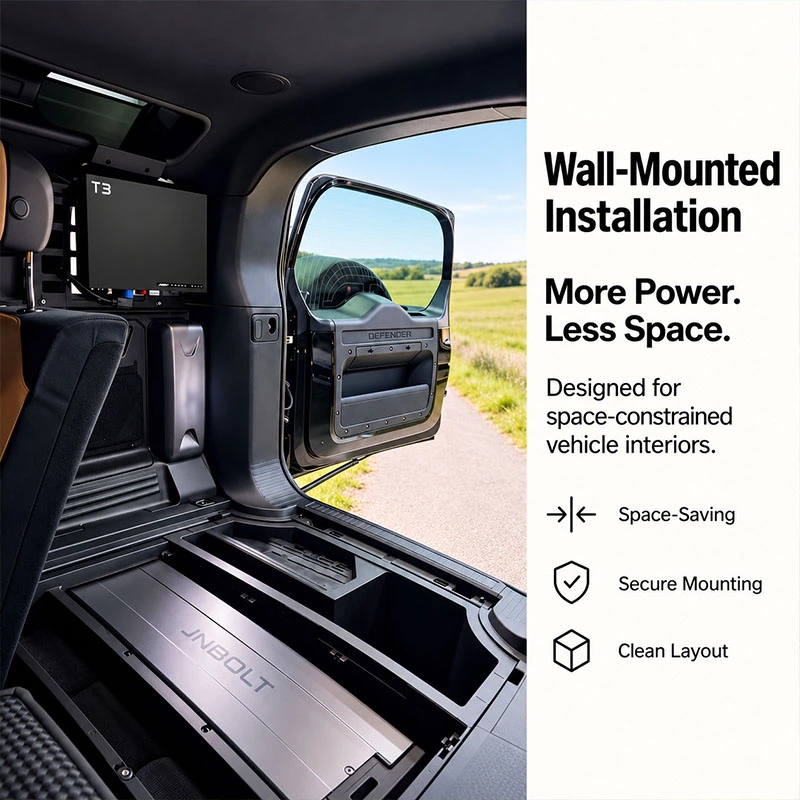

Wall mounting save space

4000+ extra long circle

Appliad for 99% electrlcal
appliances

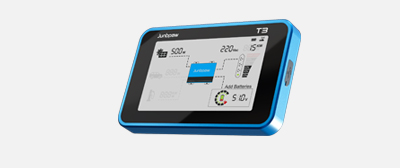

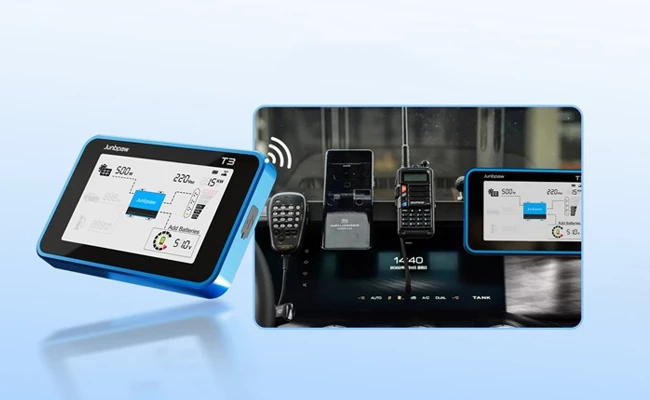

Wireless screen

Support solar charging

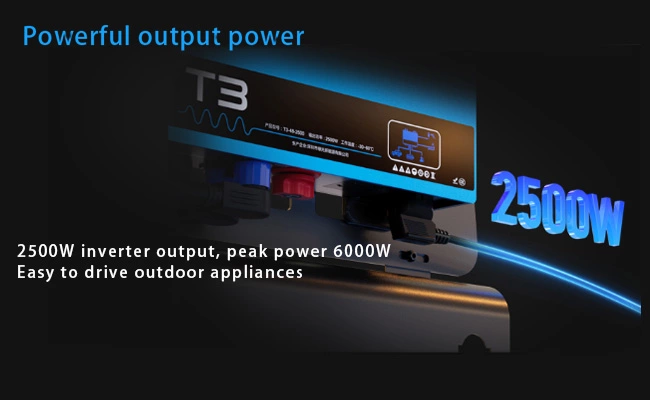

Powerful output power

2500W inverter output, peak power 6000W. Easy to drive outdoor appliances

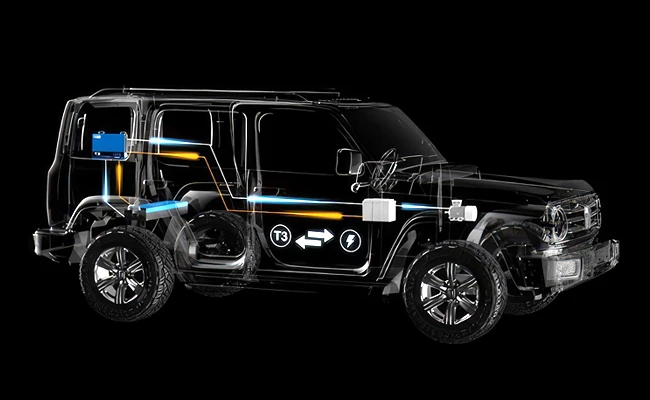

DC-DC dual charging

Intelligently detecting the power level of the main battery and antomatically replenishing it or recharge the car battery

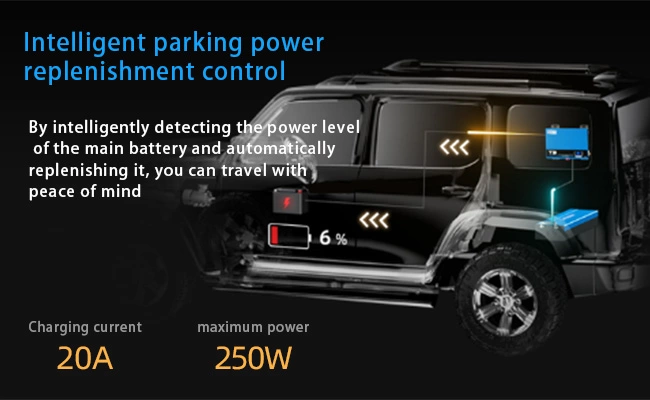

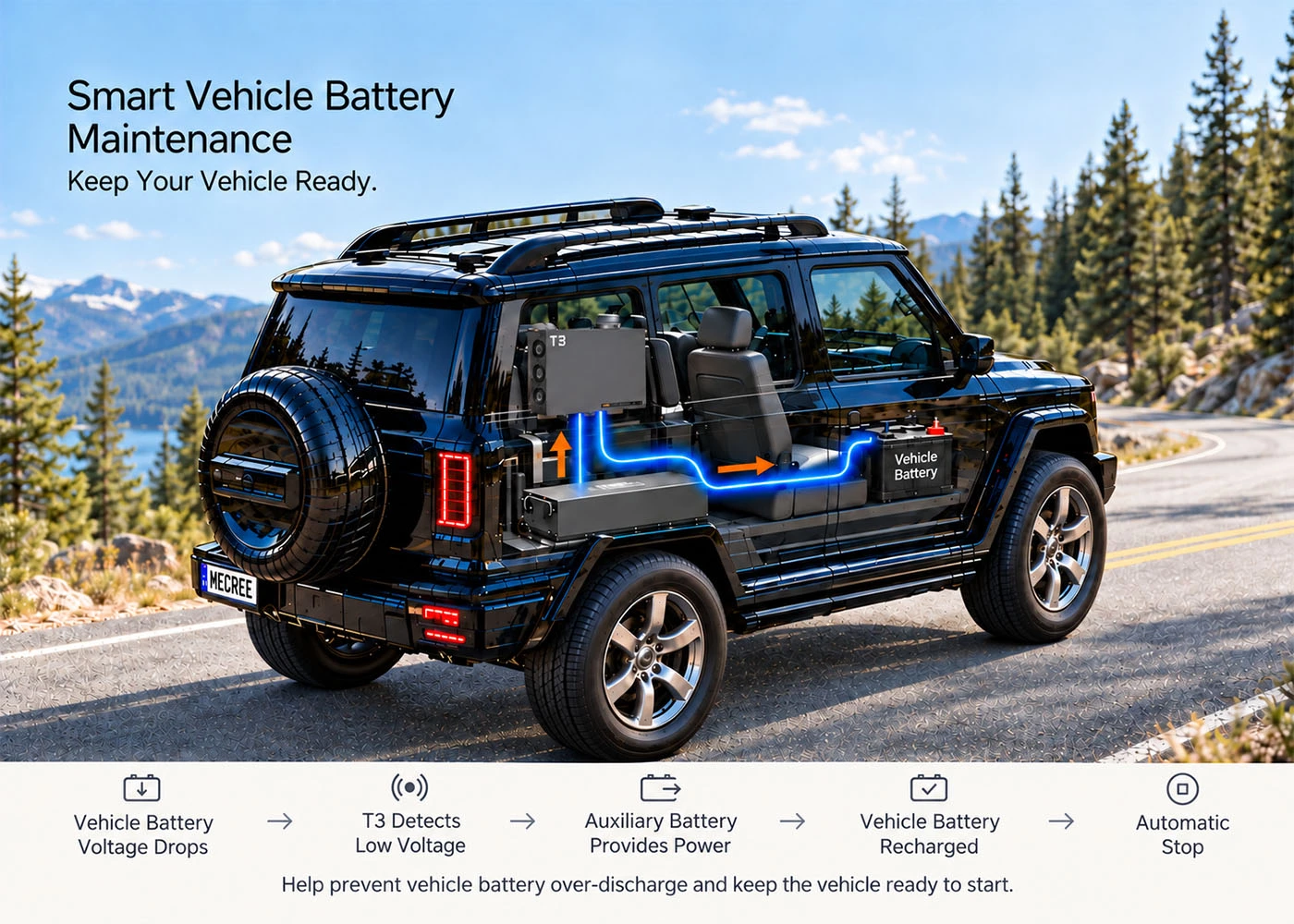

Intelligent parking power replenishment control

By intelligently detecting the power level of the main battery and automatically replenishing it, you can travel with peace of mind

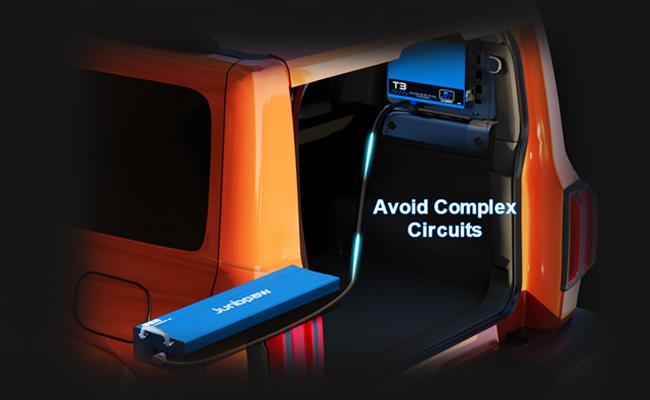

Elilminate complex circuits,easy to install

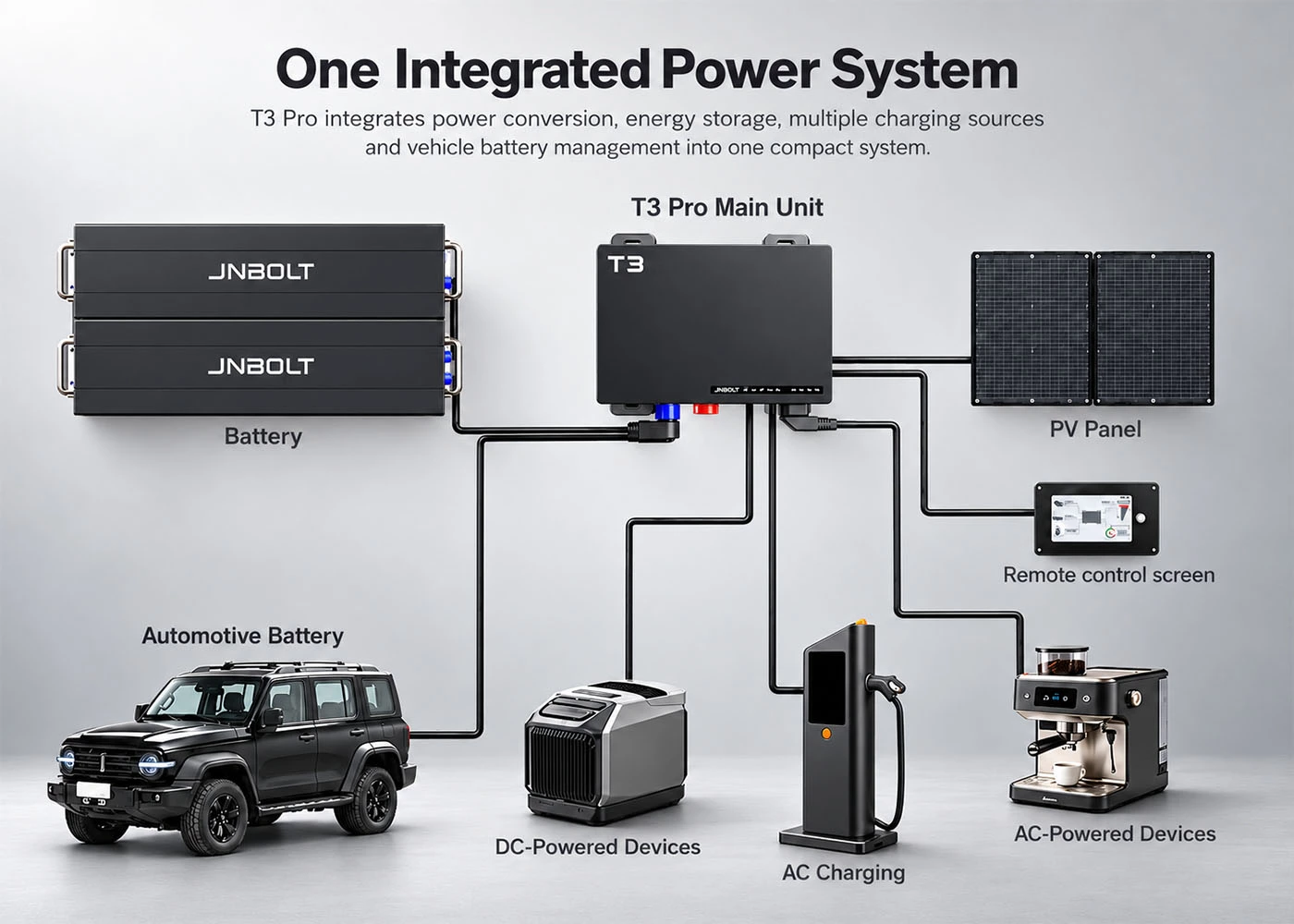

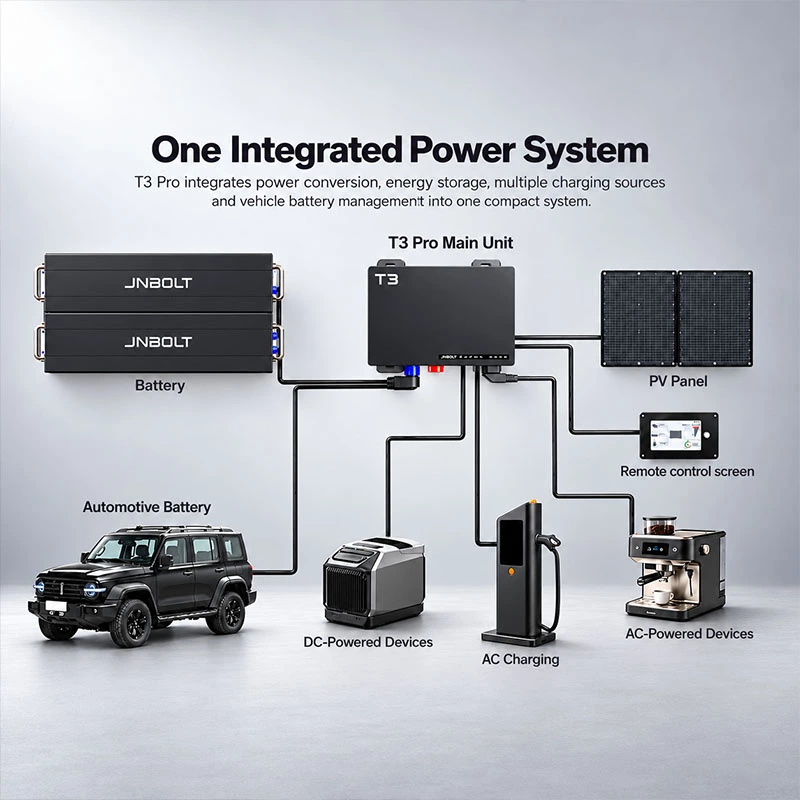

4-in-1 function integrated into the host, stable and reliable, eliminating complex circuits during vehicle vibration can pose hidden dangers

Support solar charging, MAX power 600W

600W solar charging power, fully utilizing. Outdoor energy, worry free to charge anytime and anywhere.

Intelligent no-load management control

Automatic shutdown without load for 8 hours

anytime and anywhere.

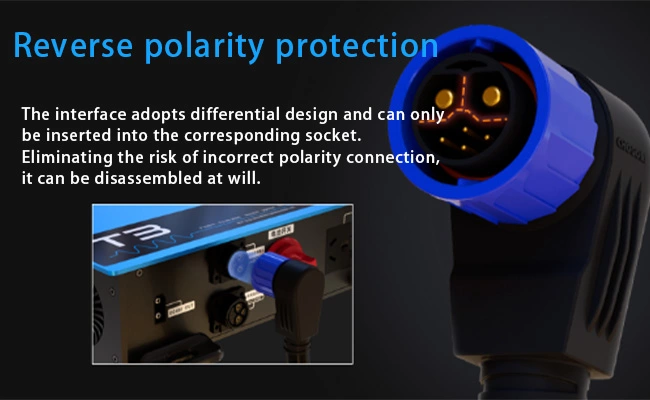

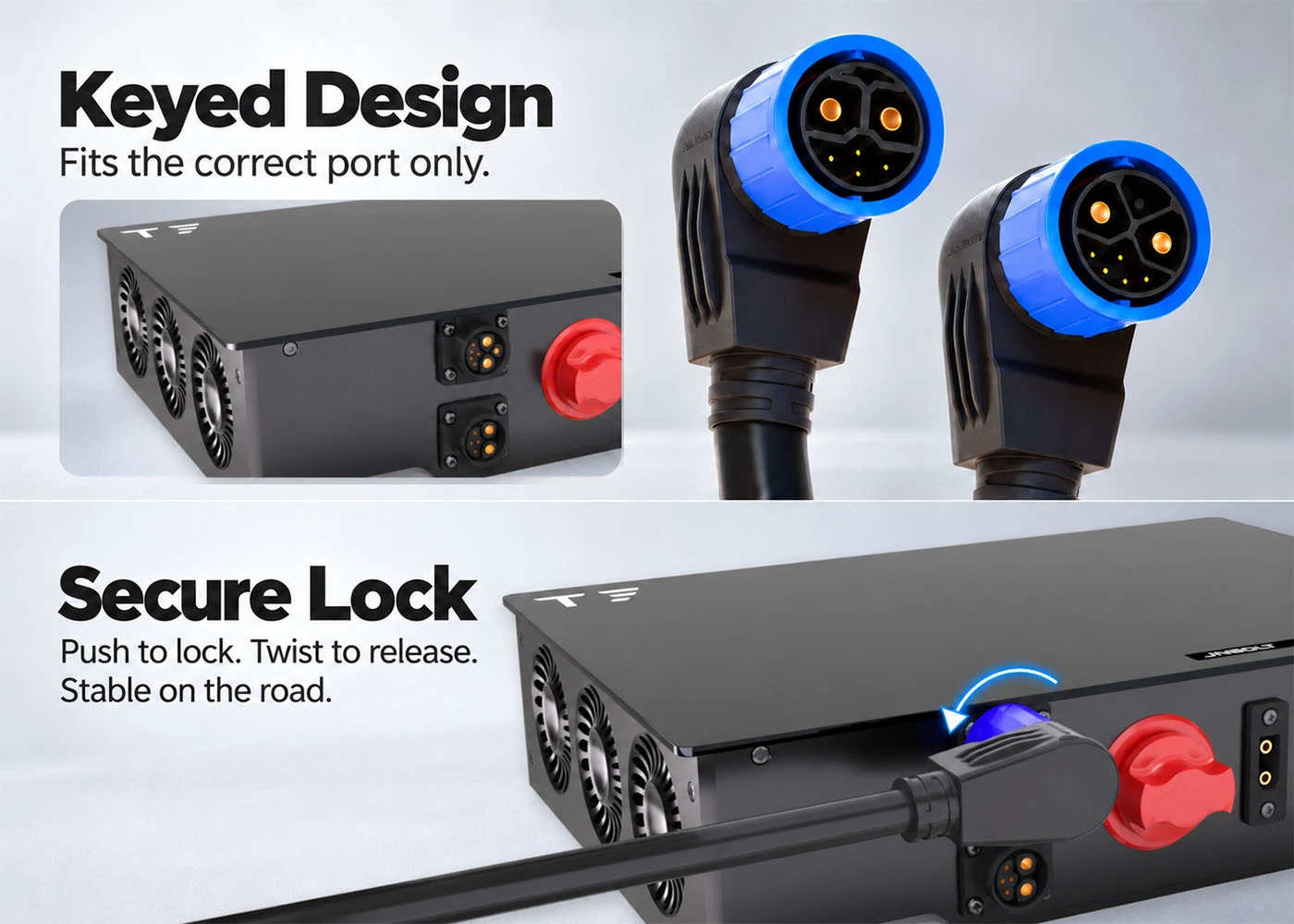

Reverse polarity protection

The interface adopts differential design and can only be inserted into the corresponding socket.

Eliminating the risk of incorrect polarity connection, it can be disassembled at will.

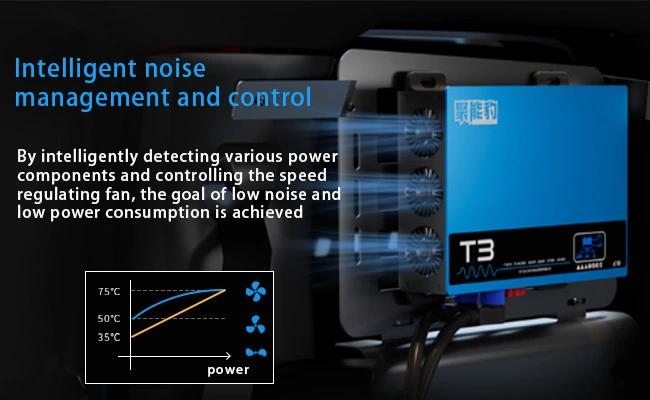

Intelligent noise management and control

By intelligently detecting various power components and controlling the speed regulating fan, the goal of low noise and low power consumption is achieved.

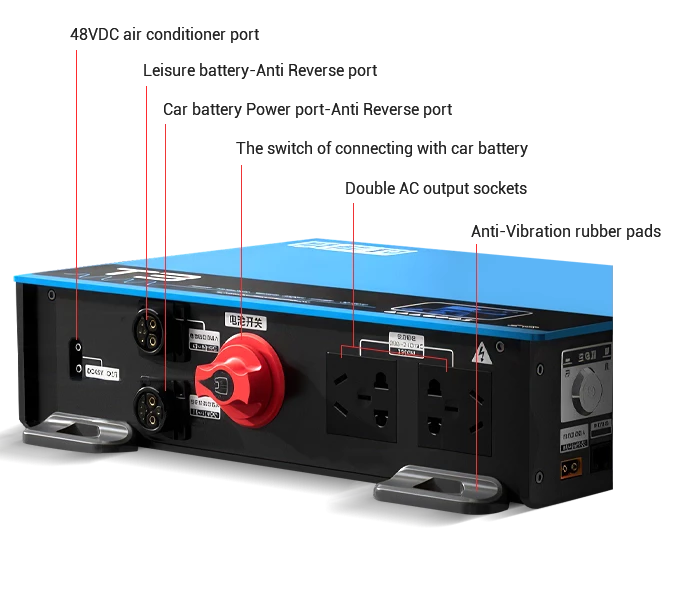

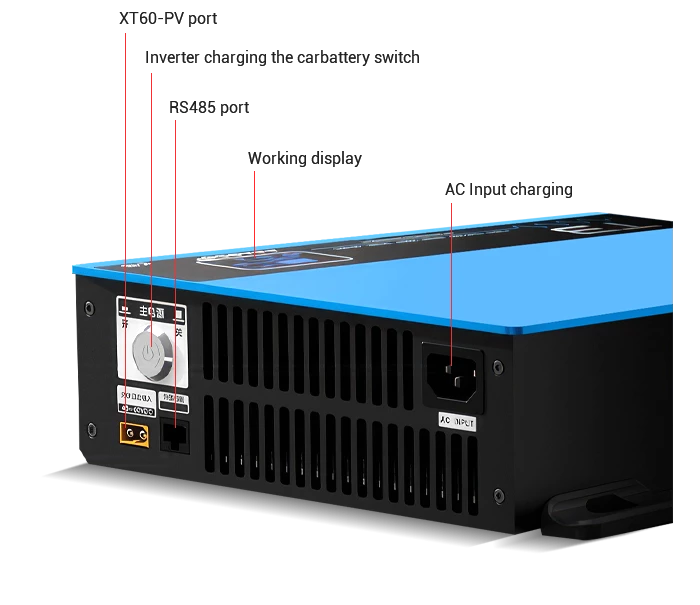

Discription of Ports and components

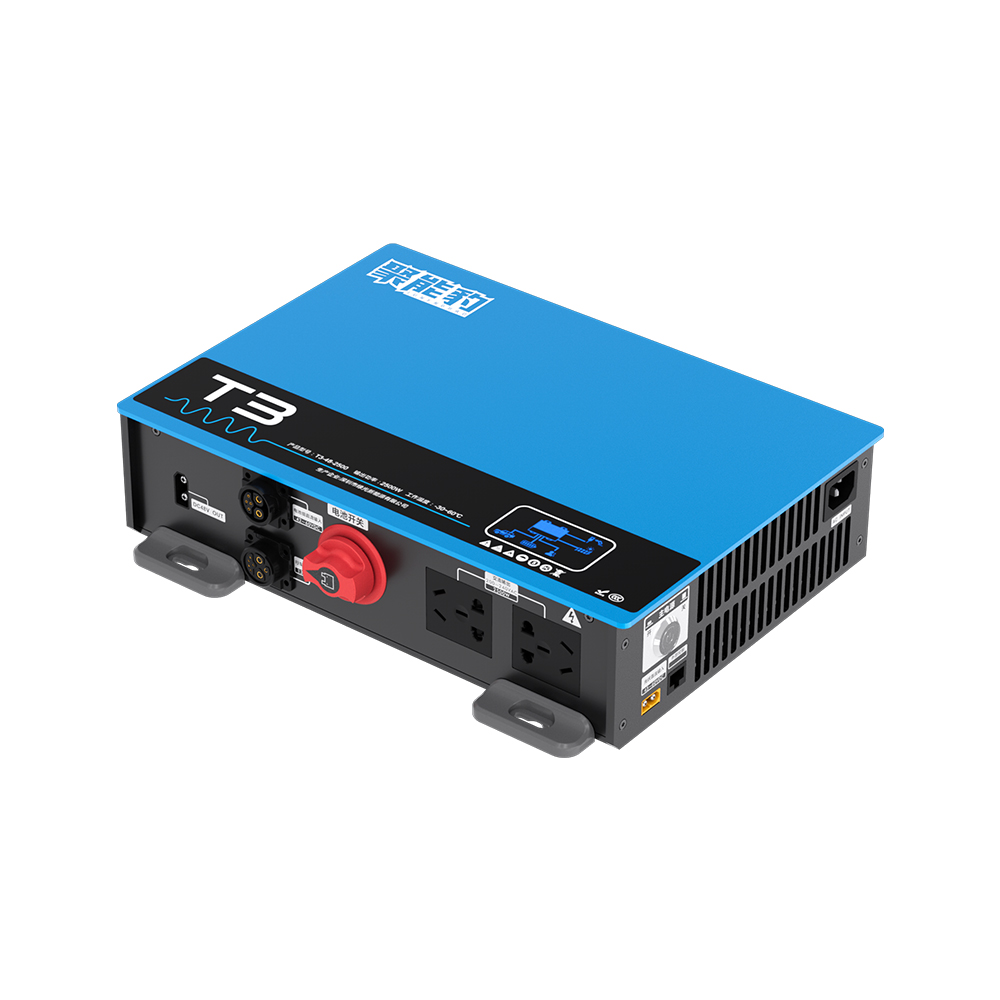

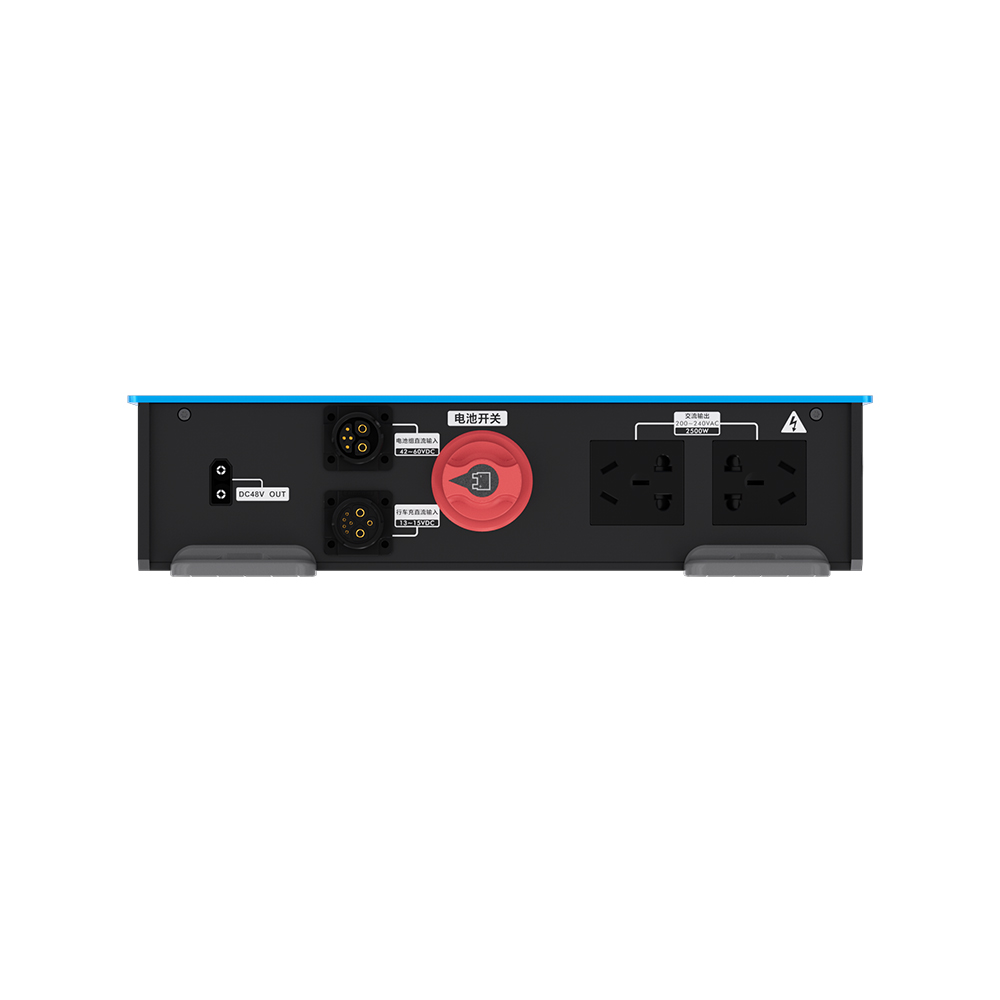

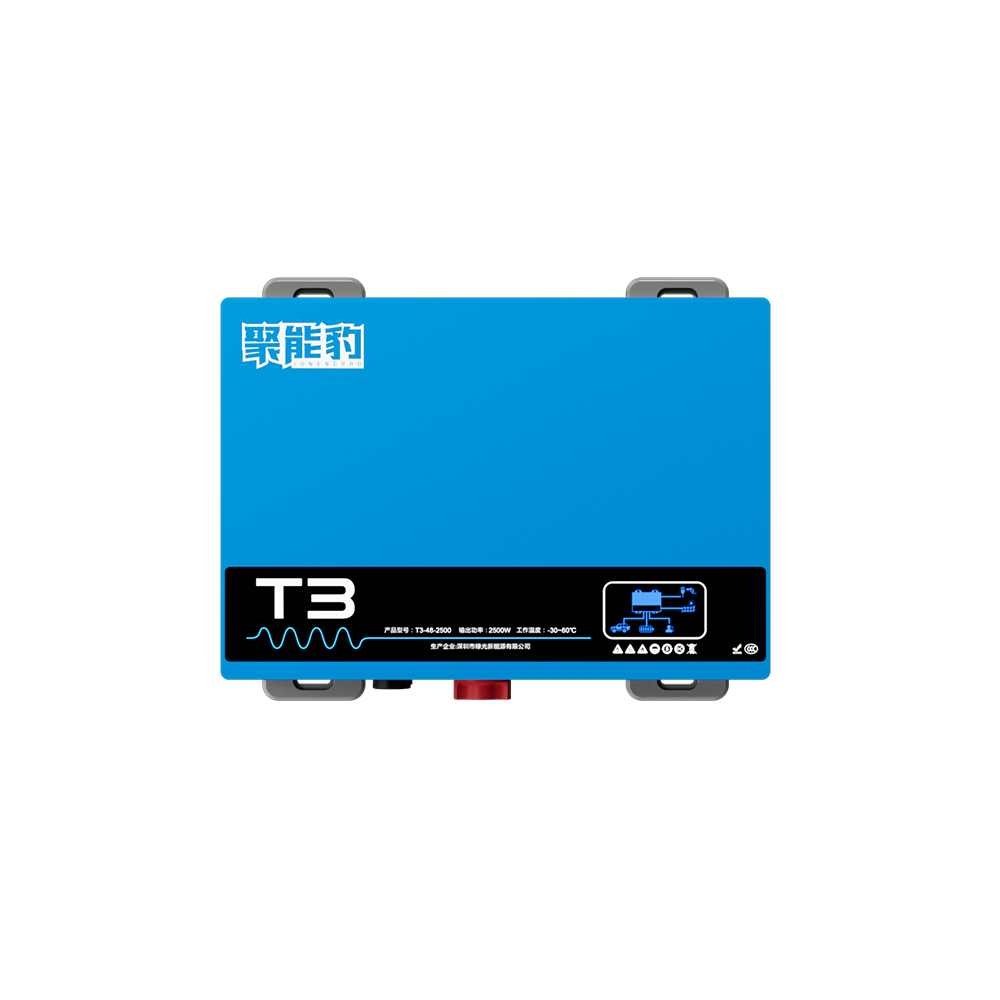

Host Machine

Packing List

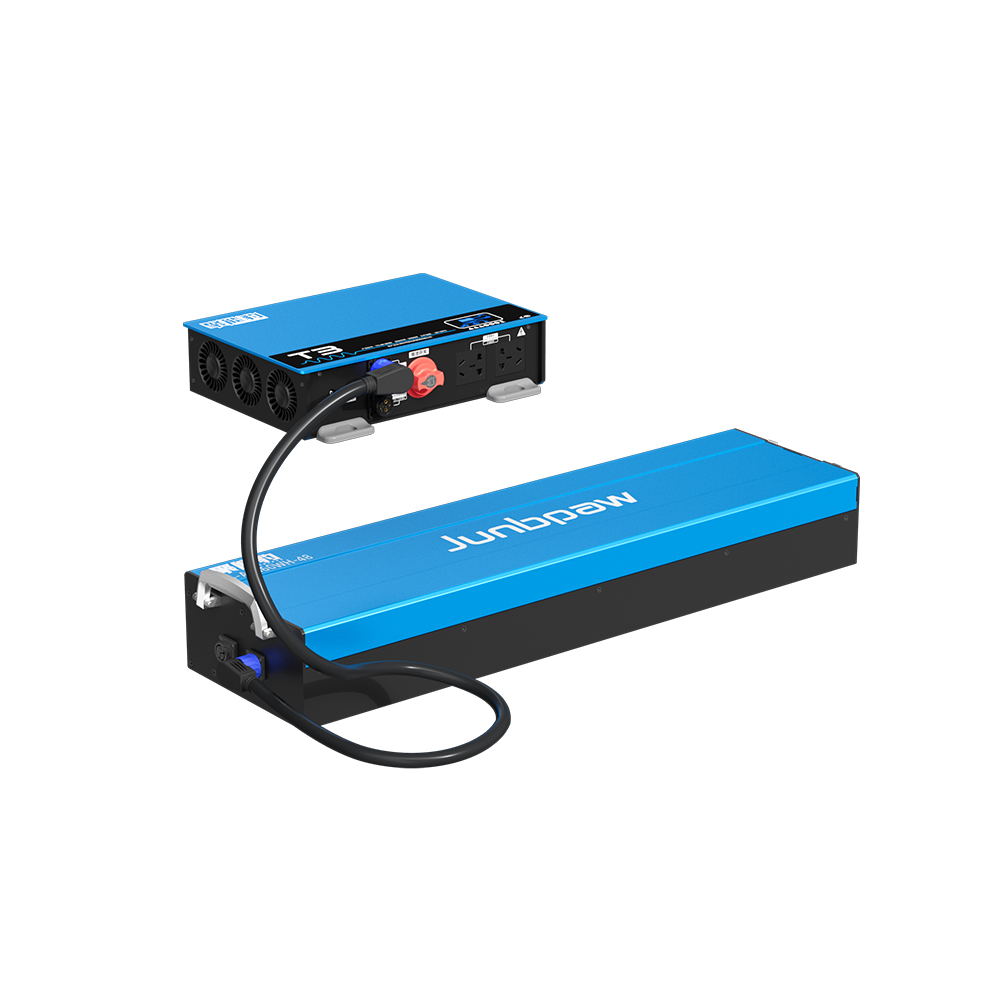

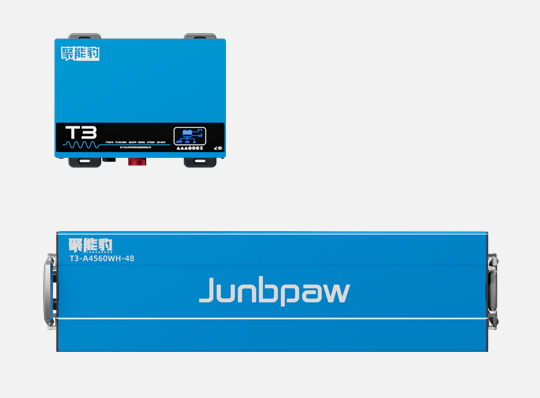

T3 host machine and Battery

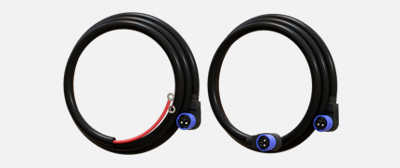

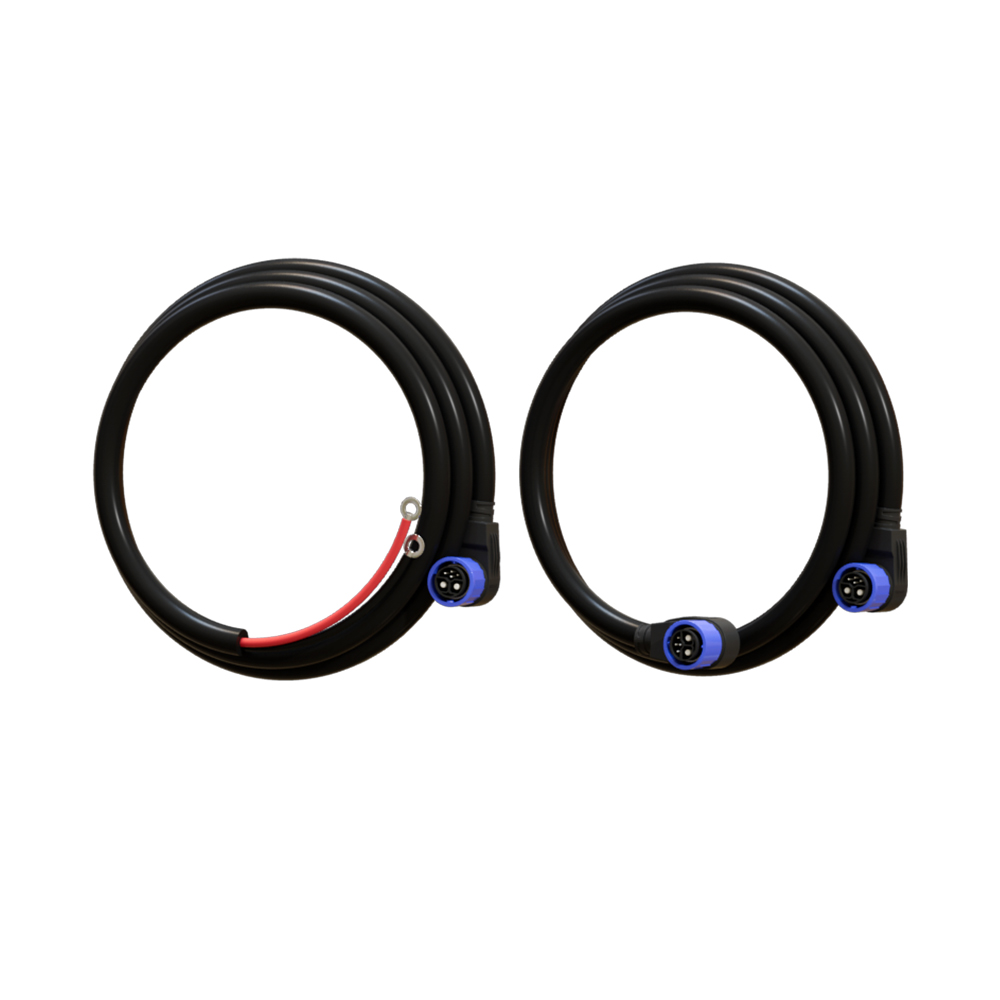

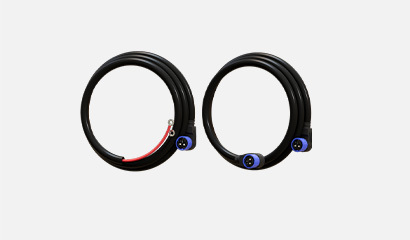

Cable

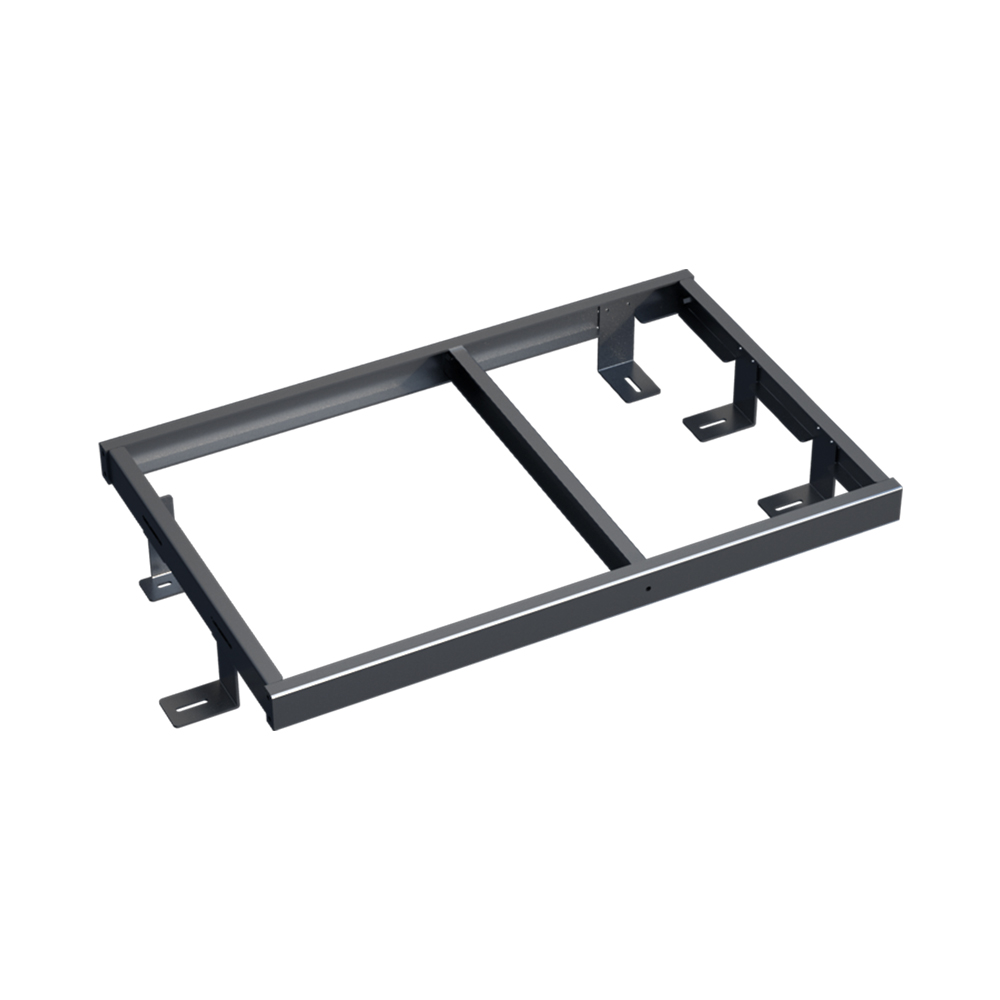

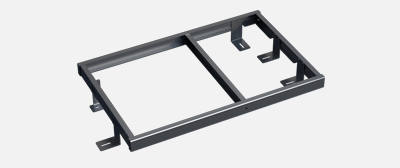

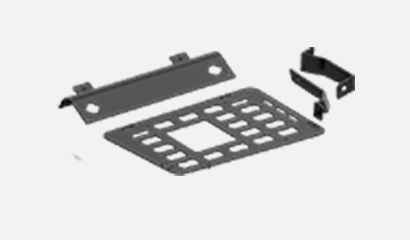

Battery installation bracket

Host Bracket Assembly

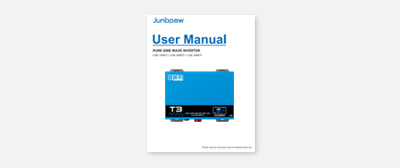

User manual and warranty

Junbpaw Pure Sine Wave Inverter Manufacturer

Experience:
We are factory,with more than 10 years of inverter manufacturing experience.
Quality:
High-efficiency conversion: Our inverter conversion efficiency can reach 90% above with the defect rate is less than 3%.
High-quality materials and heat dissipation: High-quality capacitors, inductors, and power tubes enable the inverter to run at full load for a long time. The superior heat dissipation system can prevent the inverter from overheating, avoiding performance degradation and component damage caused by high temperature.
Circuit design: The circuit board layout is reasonable and compact, pure sine wave with THD<3%.
Comprehensive protection: With overvoltage, overcurrent, overheating, undervoltage, short circuit, and reverse polarity protection.

T3 Vehicle Mounted Energy Storage System

For outdoor enthusiasts, off-grid travel often means days or even months away from the grid. During this time, they must be prepared.

Junbpaw powers your adventures, from the desert to the coast, and everywhere in between.

With a rugged system to handle difficult terrain, you can always get power from the vehicle and solar.

It’s free,unlimited,virtually unbreakable power for days of uninterrupted adventure.

MODEL		T3
PV INPUT
Max. Input Voltage		100Vdc
MPPT Voltage Range		18~100Vdc
Max. Input Current		10A
Max. Input Power		600W
AC OUTPUT (INVERTER)
Rated Power		2500W
AC Output voltage		220V/230V/240V
STARTER BATTERY / AL TERNATOR
Battery Type		Lead-Acid
Rated Battery Voltage		12Vdc
Max.Altemator Input Voltage	Conventional Altemator	12~16dc
Max.Altemator Input Voltage	Standard Alternator	12~14.2V
Max. Generator Input Current		50A
Altemator Charging Mode		Buck, Boost
LEISURE BATTERY
Battery Type		LIFEPO4
Rated Battery Voltage		48Vdc
Battery Voltage Range		39.2~51.2Vdc
Max. Charging Current		20A
EFFICIENCY
MPPT Tracking Efhciency		99%
Max. Charging Conversion Efhciency		98%
BASIC
Dimension	33526981mm	Warranty	3 years
Weight	6kg	Communication	RS485
Protection	ANTI REVERSE	Temperature	-35℃-60℃
PROTECTION
Over-charging protection, over-current protection, over-temperature protection, generator reverse connection protection, solar panel reverse connection protection, backup battery reverse connection protection, night-time ant-reverse charging protection.
